01 - Burner Box Section

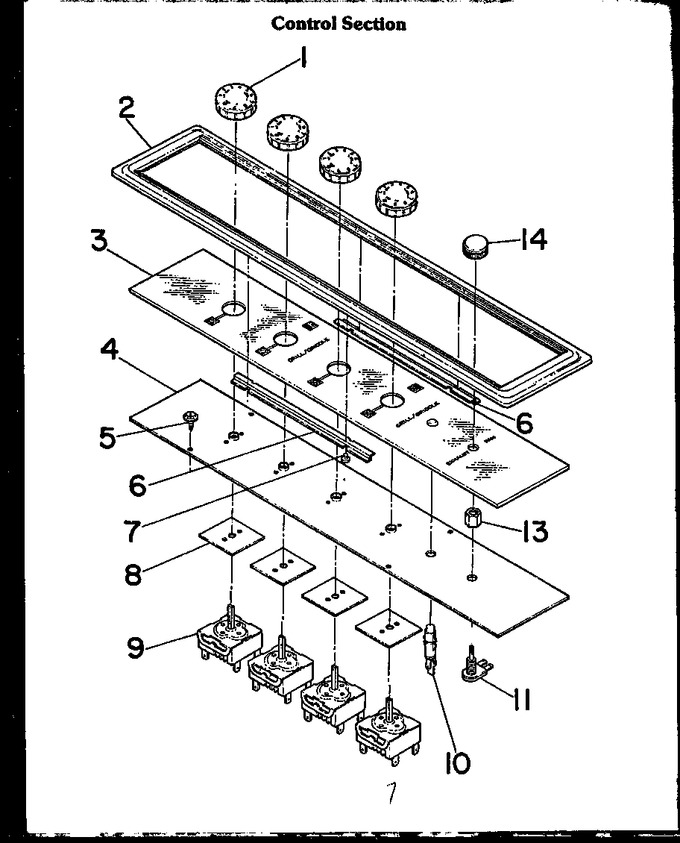

02 - Control Section
03 - Glass Ceramic Module (xst-307)
04 - Page 1
05 - Rotisserie (xst-110)
06 - Ventilation Section
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0042632 | Knob, Infinite Switch |
|
- | |||||
| 2 | Y0041072 | Control Panel (brushed Black) |
|
- | |||||
| 3 | 0042812 | Control Panel Glass Ket570 |
|
- | |||||
| 4 | 0040999 | Bracket, Switch Mtg. |
|
- | |||||
| 5 | WP90767 | Screw (Replaces: Y0041808) |
|
Immediately | $ 7.04 | ||||
| 6 | Y0040962 | Glass Retainer Ket595-590 |
|
- | |||||
| 7 | 0041819 | Screw |
|
- | |||||
| 8 | Y0042991 | Buyers Information |
|
- | |||||
| 9 | WP3400882 | Screw, No.8-32 X 3/16 Pph (Replaces: Y0041768) |
|
Immediately | $ 6.47 | ||||
| 9 | Y0051726 | Infinite Switch |
|
- | |||||
| 10 | Y0042183 | Indicator Light |
|
- | |||||
| 11 | 0042048 | Switch, Rotary-10a,120v |
|
- | |||||
| 11 | Y0041778 | Screw 6-32x3/16 Slo Cook Sw |
|
- | |||||
| 13 | Y00000000 | See Note Switch Bushing -- (not Used) |
|
- | |||||
| 14 | Y0042637 | Fan Switch Knob |
|
- |
