01 - Burner Box Section


02 - Control Section


03 - Glass Ceramic Module (xst-307)


04 - Page 1


05 - Rotisserie (xst-110)


06 - Ventilation Section

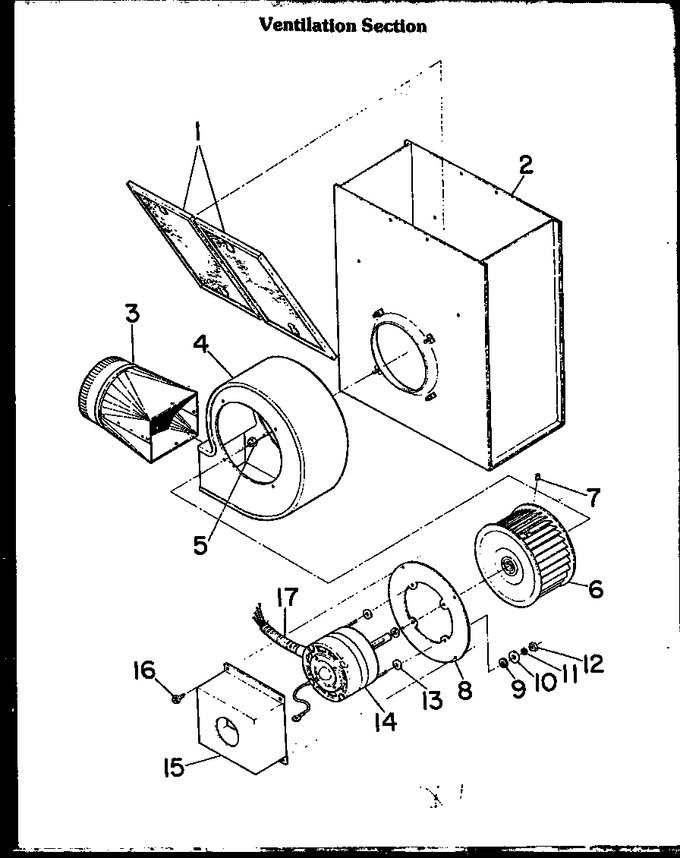

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RHF0518		Filter Exhaust Ket595   (Replaces: Y0042024)				$ 17.21
2	0040822		Sub 59560, Plenum W/a		Appelez-nous	-
3	0042755		Transition		Appelez-nous	-
4	0041093		Blower Housing W/a Ket595		Appelez-nous	-
5	0041862		Lock-nut Nylon Ket595		Appelez-nous	-
6	Y0042752		Fan Wheel Ket595		Appelez-nous	-
7	Y00000000		See Note Part Of Ref. No. 6		Appelez-nous	-
8	0040972		Motor Mtg. Plate Ket595		Appelez-nous	-
9	Y00000000		See Note Same As Ref. No. 13		Appelez-nous	-
10	0041935		Washer 3/4x5/16x 080 E L Hoods		Appelez-nous	-
11	0041937		Washer Handle Mounting		Appelez-nous	-
12	0041847		Hex Nut No.10-32 Nickel		Appelez-nous	-
13	0041981		Rubber Grommet		Appelez-nous	-
14	0042228		Sub 55078, Kit, Motor & Plate		Appelez-nous	-
15	0040835		Motor Cover Ket595		Appelez-nous	-
16	WP90767		Screw   (Replaces: Y0041808)			Immediately	$ 7.04
16	WP8281227		Tapng Scrw 8 32x3/8 Hex Hd   (Replaces: Y0041792)				$ 9.40
17	0042080		Bushing-red Devil		Appelez-nous	-
17	0042115		Conduit (3/8 X 18)		Appelez-nous	-
NI	Y0042079		Connector 3/8`` 90``		Appelez-nous	-
NI	Y0040973		Sub 59562, Orifice Assy.		Appelez-nous	-
