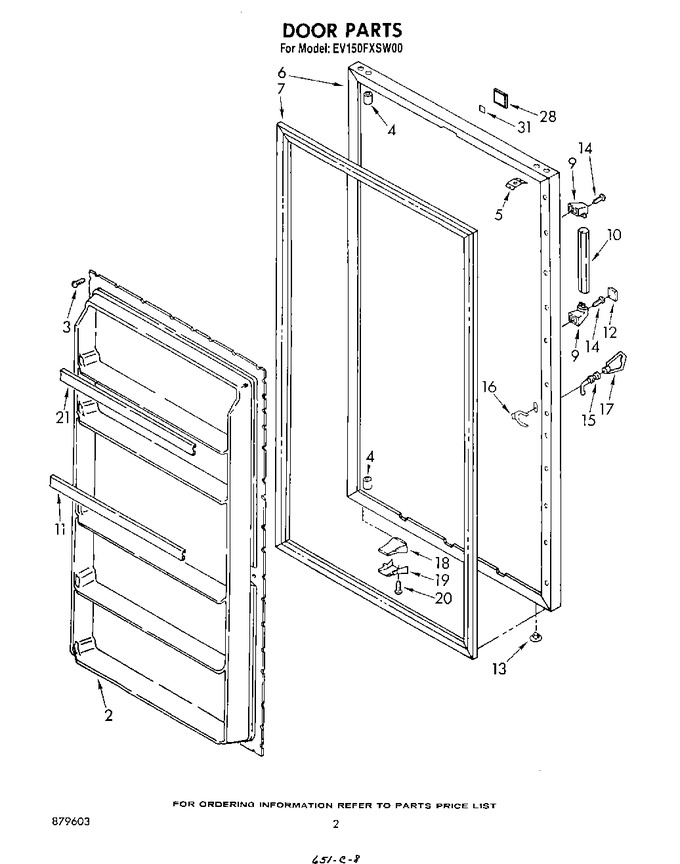

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	946763		Panel, Interior		Appelez-nous	-
3	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.07
3	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.07
4	509929		Cap, Hinge Sleeve (2)		Appelez-nous	-
5	WP939101		Anchor, Screw   (Replaces: 939101)				$ 6.75
6	1104175		Door, Exterior (almond)		Appelez-nous	-
6	1104174		Door, Exterior (white)		Appelez-nous	-
7	2188436A		Gasket, Magnetic   (Replaces: 1114820)				$ 310.54
9	1106767		End, Handle		Appelez-nous	-
10	1104123		Handle, Center		Appelez-nous	-
11	1104177		Trim, Door		Appelez-nous	-
12	1110070		Cover, End (2)		Appelez-nous	-
13	534927		Hole Plug (white)		Appelez-nous	-
14	488987		Screw, 8-15 X 1-5/8		Appelez-nous	-
15	940165		Lock		Appelez-nous	-
16	983465		Clip, Lock		Appelez-nous	-
17	WP842177		Key, Lock   (Replaces: 842177)				$ 7.29
18	1103638		Transmitter, Light		Appelez-nous	-
19	1103726		Cover, Light Transmitter		Appelez-nous	-
20	489132		Screw		Appelez-nous	-
21	1104176		Trim, Door Top		Appelez-nous	-
28	945118		Nameplate		Appelez-nous	-
31	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
31	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
31	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
31	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
31	991259		Tape Strip		Appelez-nous	-
31	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
31	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
31	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
31	515393		Transformer, Stepdown (230-115 Volt)		Appelez-nous	-
31	833938		Kit, Terminal Connector				$ 7.26
31	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 73.92
31	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 208.40
31	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
31	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
31	606755		Bag, Insulation (36-5/8`` X 46``)				$ 70.61
31	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 99.82
31	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 156.56
31	799832		Kit, Porcelain Repair		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 46.30
	350942		Xprimer, White (13 Oz. Spray Can)   (Replaces: 206922)				$ 80.69
	511881		Xlacquer, Bright Aluminum (12 Oz. Spray Can)				$ 278.35
	206925		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 799339)			Immediately	$ 51.34
	350930		Xenamel, White (13 Oz. Spray Can)   (Replaces: 799343)			Immediately	$ 34.39
	LIT879603		List, Parts		Appelez-nous	-
	LIT656493		Booklet, How To Freeze		Appelez-nous	-
	LIT1104158		Energy Guide		Appelez-nous	-
	LIT1105057		Tech Sheet		Appelez-nous	-
	LIT1104181		Guide, Use & Care		Appelez-nous	-
