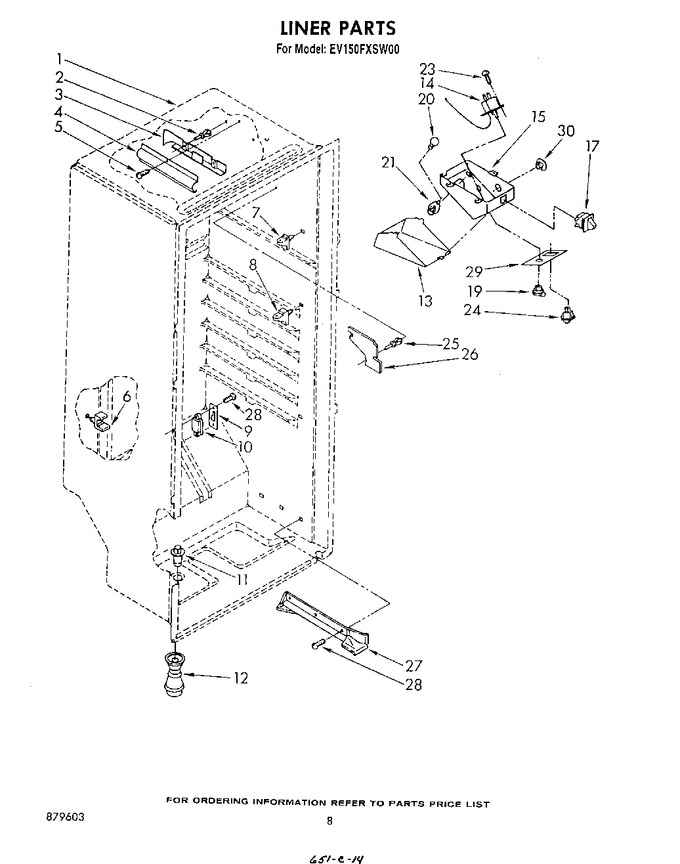

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	939961		Rivet, Plastic (2)		Appelez-nous	-
3	1100469		Wire, Cover (rear)		Appelez-nous	-
4	1100468		Wire, Cover (front)		Appelez-nous	-
5	486214		Screw 8-15 X 1/2		Appelez-nous	-
6	940144		Stud, Shelf (6)		Appelez-nous	-
7	940143		Stud, Shelf (2)		Appelez-nous	-
8	940142		Stud, Shelf (4)		Appelez-nous	-
9	940167		Strike, Lock		Appelez-nous	-
10	940168		Lock Strike, Back-up		Appelez-nous	-
11	934607		Drain, Ferrule Cap		Appelez-nous	-
12	942768		Fitting, Drain		Appelez-nous	-
13	1100466		Light, Lens		Appelez-nous	-
14	VF3		Thermostat   (Replaces: 1100786)				$ 38.40
15	1100458		Control Box		Appelez-nous	-
17	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 33.51
19	1100467		Control Knob, Thermostat		Appelez-nous	-
20	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 10.17
21	4387478		Socket   (Replaces: 851067)			Immediately	$ 99.14
23	488974		Screw, 8 X 1/2a		Appelez-nous	-
24	1100853		Toggle, Switch		Appelez-nous	-
25	939962		Rivet, Plastic (2)				$ 10.65
26	1100464		Shield, Electrical		Appelez-nous	-
27	941776		Tube Entry Cover (bottom)		Appelez-nous	-
28	W11693756		Screw, 8-15 X 5/8   (Replaces: 487042)			Immediately	$ 12.65
28	488706		Screw (repair)		Appelez-nous	-
29	1100789		Insert, Control Panel		Appelez-nous	-
30	940014		Hole Plug				$ 18.33

    View Diagram in Separate Window       Print Part List
