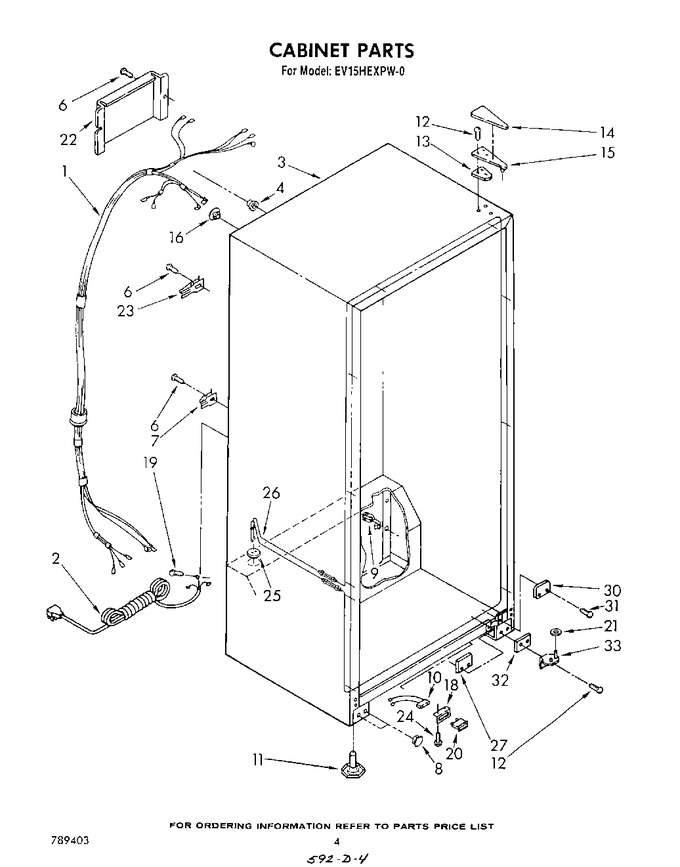

03 - Cabinet
04 - Liner
05 - Shelf
06 - Unit
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1100455 | Cabinet Wiring Assembly |
|
- | |||||
| 2 | 850626 | Cord, Service |
|
- | |||||
| 3 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 4 | 938284 | Grommet, Wiring |
|
- | |||||
| 6 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 12.62 | |||||
| 7 | 939009 | Clamp |
|
- | |||||
| 8 | 941417 | Hole Plug (almond) |
|
- | |||||
| 8 | 941416 | Hole Plug (white) |
|
- | |||||
| 9 | 544108 | Bushing, Strain Relief |
|
- | |||||
| 10 | 1103733 | Wire Assembly, Signal Light |
|
- | |||||
| 11 | 946209 | Repair |
|
$ 28.65 | |||||
| 11 | W11117769 | Leveler (4) (Replaces: 939005) |
|
Immediately | $ 16.61 | ||||
| 12 | WP999367 | Screw, 10-32 X 23/32 (Replaces: 489105) |
|
$ 7.07 | |||||
| 12 | 488949 | Screw (repair) |
|
- | |||||
| 13 | 836192 | Shim, Repair |
|
- | |||||
| 13 | 836151 | Shim, Top Hinge |
|
- | |||||
| 14 | 989194 | Hinge Cover (almond) |
|
- | |||||
| 14 | 842010 | Hinge Cover (white) |
|
- | |||||
| 15 | 842038 | Hinge & Shim (top) |
|
- | |||||
| 16 | 536195 | Hole Plug |
|
- | |||||
| 18 | 1103637 | Bracket, Signal Light |
|
- | |||||
| 19 | 488474 | Screw, 8-32 X 3/8 |
|
- | |||||
| 20 | 1103639 | Light, Signal |
|
- | |||||
| 21 | WP487576 | Washer, 1/16 (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 21 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.12 | ||||
| 21 | WP487802 | Washer, 7/32 (Replaces: 488184) |
|
Immediately | $ 7.12 | ||||
| 22 | 946218 | Cover, Wiring |
|
- | |||||
| 23 | 937357 | Clamp |
|
- | |||||
| 24 | WP965173 | Screw (Replaces: 487869) |
|
Immediately | $ 9.65 | ||||
| 25 | 946650 | Grommet, Wiring (not A Service Item) |
|
- | |||||
| 26 | 938361 | Heater, Stile (not A Service Item) |
|
- | |||||
| 27 | 935743 | Tap Plate |
|
- | |||||
| 30 | 935711 | Rail Cover, Tube Entry (almond) |
|
- | |||||
| 30 | 935707 | Rail Cover, Tube Entry (white) |
|
- | |||||
| 31 | 488895 | Screw |
|
- | |||||
| 32 | 935737 | Shim, Bottom Hinge |
|
- | |||||
| 33 | 943668 | Hinge Assembly (bottom R.h.) |
|
- |
