SELECT A DIAGRAM

02 - Door , Lit/optional


03 - Cabinet


04 - Liner


05 - Shelf


06 - Unit

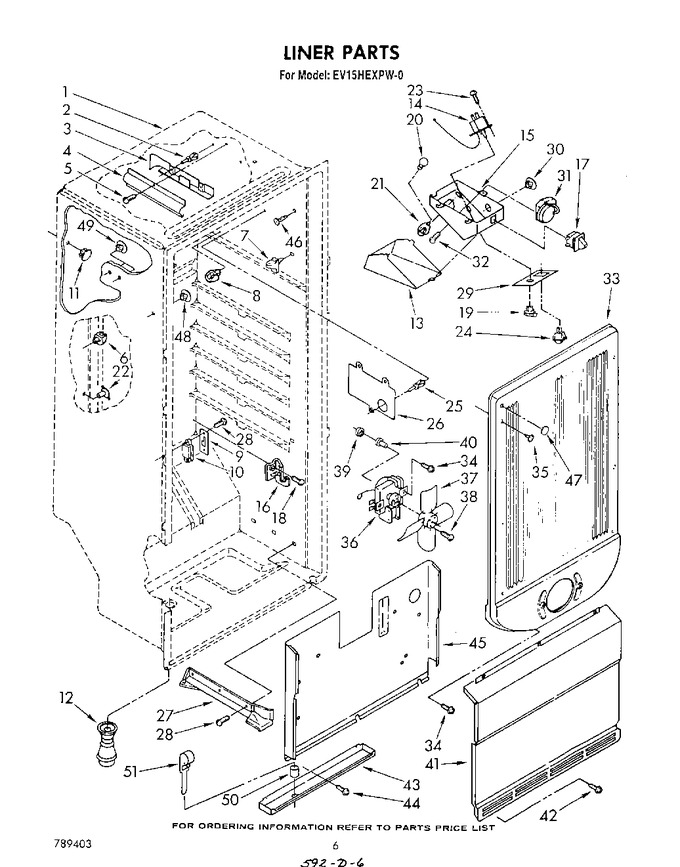

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	939961		Rivet, Plastic (2)		Appelez-nous	-
3	1100469		Wire, Cover (rear)		Appelez-nous	-
4	1100468		Wire, Cover (front)		Appelez-nous	-
5	486214		Screw 8-15 X 1/2		Appelez-nous	-
6	819091		Stud, Shelf (l.s.)   (Replaces: 946358)				$ 35.71
7	946356		Stud, Shelf (2)		Appelez-nous	-
8	819091		Stud, Shelf (r.s.)   (Replaces: 946357)				$ 35.71
9	940167		Strike, Lock		Appelez-nous	-
10	940168		Lock Strike, Back-up		Appelez-nous	-
11	655411		Hole Plug		Appelez-nous	-
12	842256		Fitting, Drain		Appelez-nous	-
13	1100466		Light, Lens		Appelez-nous	-
14	VF3		Thermostat   (Replaces: 1100459)				$ 38.40
15	1100458		Control Box		Appelez-nous	-
16	935700		Support, Evaporator (2)		Appelez-nous	-
17	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 33.51
18	W11624204		Screw, 8 X 1/2a   (Replaces: 486194)				$ 12.62
19	1100467		Control Knob, Thermostat		Appelez-nous	-
20	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 10.17
21	4387478		Socket   (Replaces: 851067)			Immediately	$ 99.14
22	1100445		Spacer (8)		Appelez-nous	-
23	488974		Screw, 8 X 1/2a		Appelez-nous	-
24	1100853		Toggle, Switch		Appelez-nous	-
25	939962		Rivet, Plastic (2)				$ 10.65
26	1100464		Shield, Electrical		Appelez-nous	-
27	941776		Tube Entry Cover (bottom)		Appelez-nous	-
28	W11693756		Screw, 8-15 X 5/8   (Replaces: 487042)			Immediately	$ 12.65
28	488706		Screw (repair)		Appelez-nous	-
29	1100789		Insert, Control Panel		Appelez-nous	-
30	940014		Hole Plug				$ 18.33
31	W10822278		Timer, Defrost   (Replaces: 945486)			Immediately	$ 31.00
32	WP487353		Screw, 6-20 X 1/2   (Replaces: 488693)				$ 6.81
33	1103661		Air Duct & Fan Cover		Appelez-nous	-
34	489042		Screw, 8-15 X 5/8a		Appelez-nous	-
35	489115		Fastener, Snap-in (8)				$ 5.51
36	482731		Motor, Fan   (Replaces: 1100473)			Immediately	$ 71.15
37	WP1100938		Fan, Blade   (Replaces: 1100938)				$ 79.08
38	00487887		Screw, 3-48 X 1/4   (Replaces: 487887)				$ 220.32
39	531933		Grommet (2)				$ 5.70
40	935701		Spacer (2)		Appelez-nous	-
41	1100476		Evaporator, Cover		Appelez-nous	-
42	WP488729		Screw, 8-15 X 1/2   (Replaces: 488992)			Immediately	$ 7.01
43	1100471		Pan, Drain		Appelez-nous	-
44	W11624204		Screw, 8 X 1/2a   (Replaces: 486194)				$ 12.62
45	1100470		Shield, Heat		Appelez-nous	-
46	946355		Support, Stud		Appelez-nous	-
47	1103725		Hole Plug		Appelez-nous	-
48	WP941839		Hole, Plug   (Replaces: 941839)				$ 6.89
49	944795		Hole Plug		Appelez-nous	-
50	534139		Extension, Drain		Appelez-nous	-
51	849689		Heat, Probe		Appelez-nous	-
