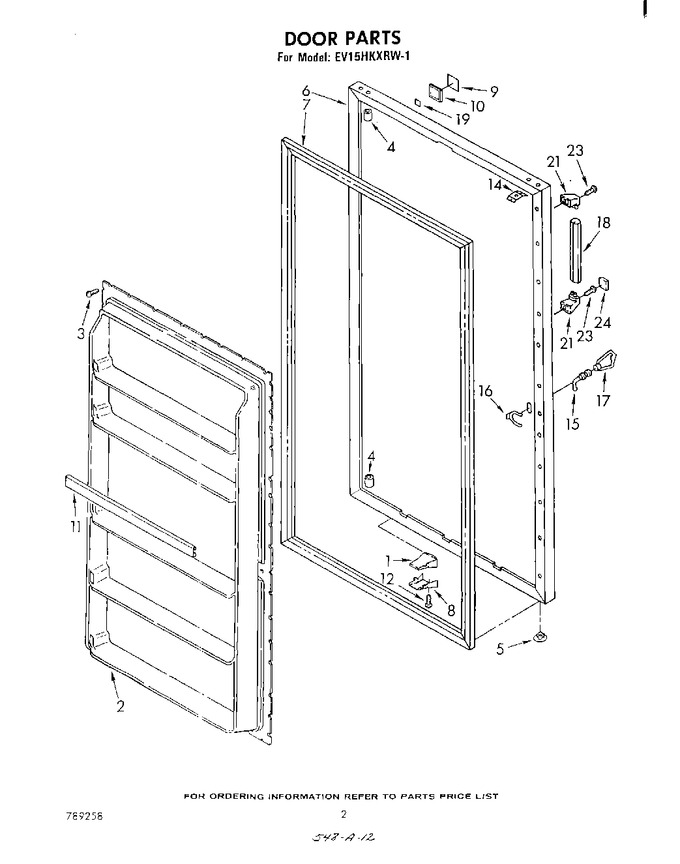

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1103638		Transmitter, Light		Appelez-nous	-
2	1100450		Panel, Interior		Appelez-nous	-
3	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.07
3	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.07
5	534927		Hole Plug		Appelez-nous	-
6	946754		(almond)		Appelez-nous	-
6	946752		Door, Exterior (white)		Appelez-nous	-
7	2188436A		Gasket, Magnetic   (Replaces: 943623)				$ 310.54
8	1103726		Cover, Light Transmitter		Appelez-nous	-
9	945116		Nameplate Assembly		Appelez-nous	-
10	945108		Nameplate		Appelez-nous	-
11	1100102		Trim, Door Shelf (three Used)		Appelez-nous	-
11	1100116		Trim, Door (1)		Appelez-nous	-
12	WP965173		Screw, 8 X 1/2a   (Replaces: 487358)			Immediately	$ 9.65
14	WP939101		Anchor, Screw (6)   (Replaces: 939101)				$ 6.75
15	940165		Lock		Appelez-nous	-
16	983465		Clip, Lock		Appelez-nous	-
17	WP842177		Key, Lock   (Replaces: 842177)				$ 7.29
18	946738		Handle, Center		Appelez-nous	-
19	991259		Tape Strip		Appelez-nous	-
21	946737		End, Handle		Appelez-nous	-
23	488987		Screw, 8-15 X 1-5/8		Appelez-nous	-
24	789258		List, Parts		Appelez-nous	-
24	WP503695		Cork Sealer   (Replaces: 503695)				$ 106.15
24	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
24	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
24	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
24	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 99.82
24	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
24	799832		Kit, Porcelain Repair		Appelez-nous	-
24	1103667		Use & Care Guide		Appelez-nous	-
24	656493		How To Freeze Booklet		Appelez-nous	-
24	1105070		Tech Sheet		Appelez-nous	-
24	1103670		Energy Guide		Appelez-nous	-
24	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 156.56
24	946742		Cover, End		Appelez-nous	-
24	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
24	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
24	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
24	515393		Transformer, Stepdown (230-115 Volt)		Appelez-nous	-
24	833938		Kit, Terminal Connector				$ 7.26
24	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 73.92
24	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 208.40
24	876029		Kit, Foam Slabl (30`` X 32-1/2`` X 1-1/2``)		Appelez-nous	-
24	606755		Bag, Insulation (36-5/8`` X 46``)				$ 70.61
	350930		Xenamel, White (13 Oz. Spray Can)   (Replaces: 799343)			Immediately	$ 34.39
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 46.30
	511881		Xlacquer, Bright Aluminum (12 Oz. Spray Can)				$ 278.35
	206925		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 799339)			Immediately	$ 51.34
	350942		Xprimer, White (13 Oz. Spray Can)   (Replaces: 206922)				$ 80.69
