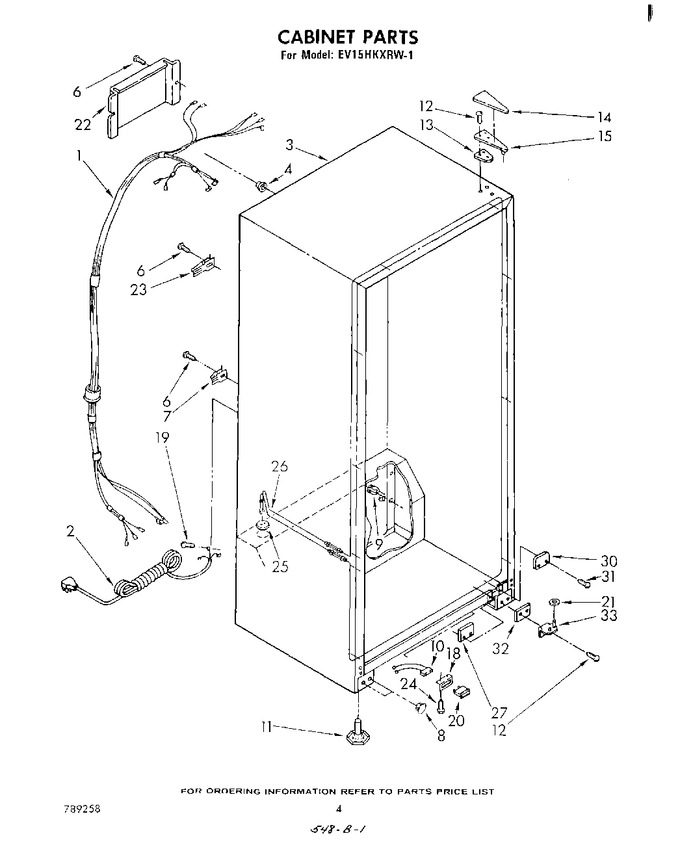

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1100455		Cabinet Wiring Assembly		Appelez-nous	-
2	850626		Cord, Service		Appelez-nous	-
3	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
4	938284		Grommet, Wiring		Appelez-nous	-
6	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
7	939009		Clamp		Appelez-nous	-
8	941416		Hole Plug (white)		Appelez-nous	-
8	941417		Hole Plug (almond)		Appelez-nous	-
9	544108		Bushing, Strain Relief		Appelez-nous	-
10	1103733		Wire Assembly, Signal Light		Appelez-nous	-
11	946209		Repair				$ 28.65
11	W11117769		Leveler (4)   (Replaces: 939005)			Immediately	$ 16.61
12	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 7.07
12	488949		Screw (repair)		Appelez-nous	-
13	836192		Shim, Repair		Appelez-nous	-
13	836151		Shim, Top Hinge		Appelez-nous	-
14	989194		Hinge Cover (almond)		Appelez-nous	-
14	842010		Hinge Cover (white)		Appelez-nous	-
15	842038		Hinge & Shim (top)		Appelez-nous	-
18	1103637		Bracket, Signal Light		Appelez-nous	-
19	488474		Screw, 8-32 X 3/8		Appelez-nous	-
20	WP487576		1/16   (Replaces: 487576)			Immediately	$ 8.89
20	1103639		Light, Signal		Appelez-nous	-
20	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.12
20	WP487802		7/32   (Replaces: 488184)			Immediately	$ 7.12
22	946218		Cover, Wiring		Appelez-nous	-
23	937357		Clamp		Appelez-nous	-
24	WP965173		Screw   (Replaces: 487869)			Immediately	$ 9.65
25	946650		Grommet, Wiring (not A Service Item)		Appelez-nous	-
26	938361		Heater, Stile (not A Service Item)		Appelez-nous	-
27	935743		Tap Plate		Appelez-nous	-
30	935711		Rail Cover, Tube Entry (almond)		Appelez-nous	-
30	935707		Rail Cover, Tube Entry (white)		Appelez-nous	-
31	488895		Screw		Appelez-nous	-
32	935737		Shim, Bottom Hinge		Appelez-nous	-
33	943668		Hinge Assembly (bottom R.h.)		Appelez-nous	-
