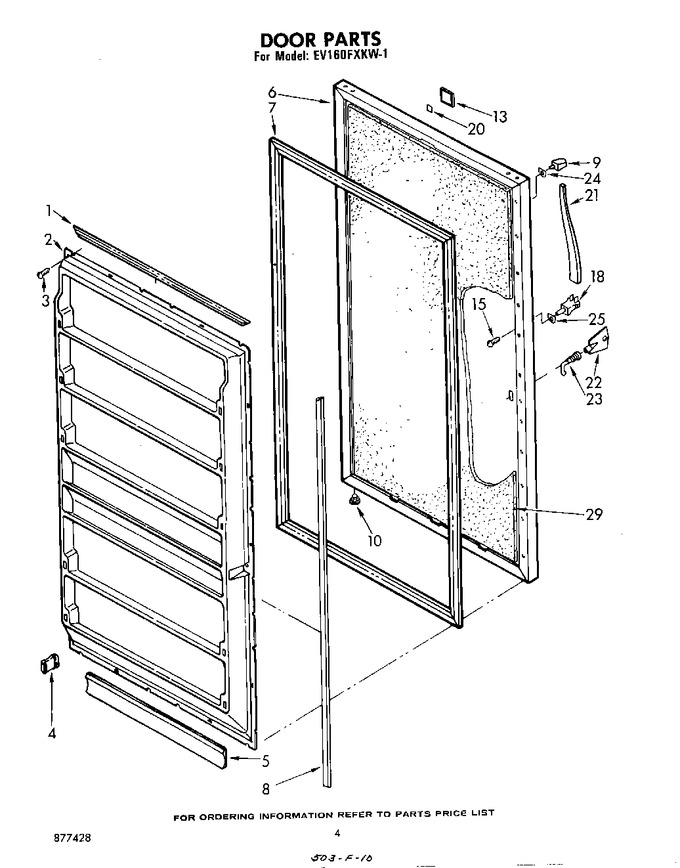

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Breaker
02 - Cabinet
03 - Door , Lit/optional
04 - Unit
05 - Liner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 836115 | Retainer, Gasket (2) |
|
- | |||||
| 2 | 942673 | Panel |
|
- | |||||
| 3 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 12.62 | |||||
| 3 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 7.07 | ||||
| 4 | 943151 | Retainer, Trim (8) |
|
- | |||||
| 5 | 984916 | Trim, Shelf (4) |
|
- | |||||
| 6 | 934995 | Door, Exterior (white) |
|
- | |||||
| 6 | 934996 | Door, Exterior (coffee) |
|
- | |||||
| 6 | 943999 | Door, Exterior (almond) |
|
- | |||||
| 6 | 934998 | Door, Exterior (new Avocado) |
|
- | |||||
| 6 | 934997 | Door, Exterior (new Gold) |
|
- | |||||
| 7 | 2188439A | Gasket, Magnetic (Replaces: 942674) |
|
- | |||||
| 8 | 836120 | Retainer, Gasket (side) (2) |
|
- | |||||
| 9 | 982948 | End, Handle |
|
- | |||||
| 10 | 534927 | Plug, Hole (2) |
|
- | |||||
| 13 | 945108 | Nameplate |
|
- | |||||
| 15 | 488818 | Screw, .190dt X 3/4 |
|
$ 42.82 | |||||
| 18 | 982947 | End, Handle |
|
- | |||||
| 20 | 991259 | Tape Strip |
|
- | |||||
| 21 | 982978 | Handle, Center |
|
- | |||||
| 22 | 941380 | Key |
|
- | |||||
| 23 | 941379 | Lock |
|
- | |||||
| 24 | 941918 | Shim, Handle End |
|
- | |||||
| 25 | 941917 | Shim, Handle End |
|
- | |||||
| 29 | 876370 | Kit, Insulation (5 Pcs. 3`` X 24`` X 48) (Replaces: 479976) |
|
$ 208.40 | |||||
| 29 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 106.15 | |||||
| 29 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 29 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 29 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 29 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | |||||
| 29 | 511881 | Lacquer, Bright Aluminum (12 Oz. Spray Can) |
|
$ 278.35 | |||||
| 29 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 70.61 | |||||
| 29 | WP279368 | Cement, Insulation (1 Oz.) (Replaces: 797403) |
|
Immediately | $ 99.82 | ||||
| 29 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 29 | 799832 | Kit, Porcelain Repair |
|
- | |||||
| 29 | 851151 | Tech Sheet |
|
- | |||||
| 29 | 942614 | Guide, Use & Care |
|
- | |||||
| 29 | 656493 | Booklet, Freezing |
|
- | |||||
| 29 | 942652 | Energy Guide |
|
- | |||||
| 29 | 877428 | List, Parts |
|
- | |||||
| 29 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 156.56 | ||||
| 29 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 98.33 | |||||
| 29 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 29 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 29 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 29 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 29 | 799351 | Thinner, Blend (1 Gal.) |
|
- | |||||
| 29 | 212643 | Sealer, Gum (22 Pcs. 3/16`` X 7``) |
|
Immediately | $ 73.92 | ||||
| 261890 | Xenamel, New Gold (13 Oz. Spray Can) |
|
- | ||||||
| 350942 | Xprimer, White (12 Oz. Spray Can) (Replaces: 206922) |
|
$ 80.69 | ||||||
| 206925 | Xleveler, Enamel (12 Oz. Spray Can) |
|
- | ||||||
| 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 799339) |
|
Immediately | $ 51.34 | |||||
| 350930 | Xenamel, White (12 Oz. Spray Can) (Replaces: 799343) |
|
Immediately | $ 34.39 | |||||
| 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 46.30 | ||||||
| 261888 | Xenamel, New Avocado (13 Oz. Spray Can) |
|
- | ||||||
| 261886 | Xenamel, Coffee (13 Oz. Spray Can) |
|
- |
