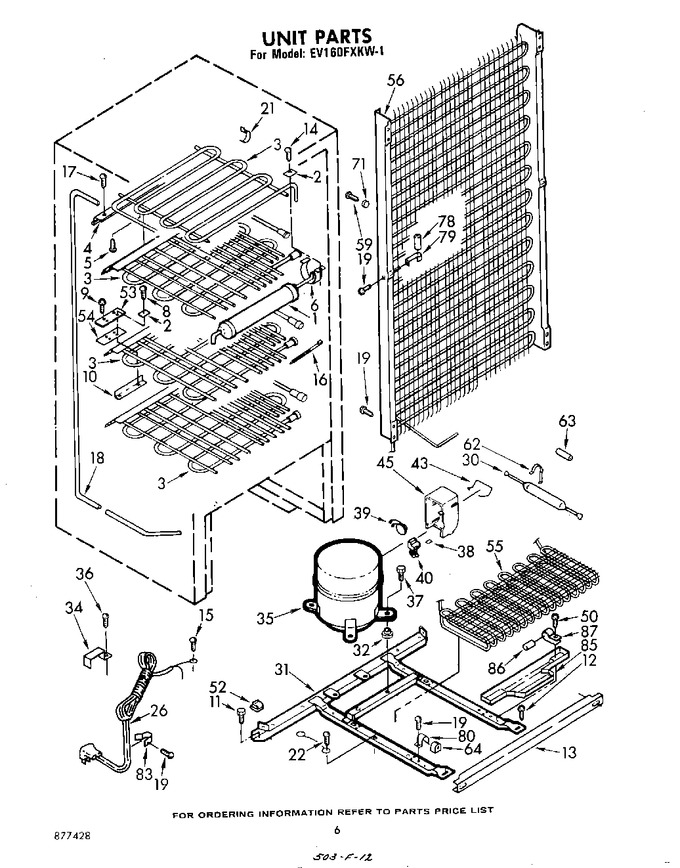

SELECT A DIAGRAM

01 - Breaker


02 - Cabinet


03 - Door , Lit/optional


04 - Unit


05 - Liner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	934367		Header & Tube Assembly		Appelez-nous	-
2	510614		Plate (3)		Appelez-nous	-
3	987279		Shelf, Bottom		Appelez-nous	-
3	934364		Shelf, 3rd		Appelez-nous	-
3	987281		Shelf, 2nd		Appelez-nous	-
3	938226		Shelf, Top		Appelez-nous	-
4	934992		Trim, Shelf Front		Appelez-nous	-
5	489056		Screw, 8 X 1-3/8 (3)		Appelez-nous	-
6	851298		Clamp, Header		Appelez-nous	-
8	488054		Screw, 8-32 X 7/16 (2)		Appelez-nous	-
9	488436		Screw, 8-32 X 5/8 (2)		Appelez-nous	-
10	510754		Clip		Appelez-nous	-
11	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
12	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
13	941669		Unit Mounting, Rail		Appelez-nous	-
14	WP487353		Screw, 6-32 X 1/2   (Replaces: 488075)				$ 6.81
15	488474		Screw, 8-32 X 3/8 (ground)		Appelez-nous	-
16	851095		Strap (3)		Appelez-nous	-
17	WP308685		Screw, 10-16 X 1/2   (Replaces: 487942)			Immediately	$ 7.08
18	943345		Exchanger, Heat		Appelez-nous	-
19	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
21	851332		Clip, Tube		Appelez-nous	-
22	303776		Screw, 8-32 X 5/16 (2)   (Replaces: 488879)		Appelez-nous	-
26	850626		Cord, Service		Appelez-nous	-
30	W10843121		Drier   (Replaces: 978246)			Immediately	$ 47.31
31	548655		Frame, Unit		Appelez-nous	-
32	547283		Grommet (2)		Appelez-nous	-
34	653035		Clip, Service Plug		Appelez-nous	-
35	464082		Compressor		Appelez-nous	-
36	486899		Screw		Appelez-nous	-
37	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
38	547272		Bumper		Appelez-nous	-
39	549041		Overload		Appelez-nous	-
40	989662		Relay		Appelez-nous	-
43	531318		Spring, Relay		Appelez-nous	-
45	549945		Case, Relay		Appelez-nous	-
50	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 19.04
52	548745		Clip, Wire (2)		Appelez-nous	-
53	851289		Plate, Thermostat		Appelez-nous	-
54	851290		Shim, Thermostat Plate		Appelez-nous	-
55	851113		Precooler		Appelez-nous	-
56	941603		Condenser		Appelez-nous	-
59	WP488729		Screw, 8 X 1/2a   (Replaces: 486993)			Immediately	$ 7.01
62	547637		Clamp, Drier		Appelez-nous	-
63	510446		Sleeve (2)		Appelez-nous	-
64	513646		Grommet (4)		Appelez-nous	-
71	204349		Bumper (2)		Appelez-nous	-
78	850194		Dampener		Appelez-nous	-
79	515268		Clip, Dampener		Appelez-nous	-
80	531086		Clamp, Tube		Appelez-nous	-
83	549193		Clamp-cord				$ 12.05
85	989269		Drip Pan, Heat Exchanger		Appelez-nous	-
86	510769		Dampener (2)		Appelez-nous	-
87	978030		Valve, Access (3/4``)				$ 117.64
87	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
87	510716		Clamp, Tube (2)		Appelez-nous	-
87	978026		Valve, Access (5/16``)			Immediately	$ 115.28
87	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
87	978028		Valve, Access (1/2)		Appelez-nous	-
87	978029		Valve Access (5/8``)				$ 93.85
