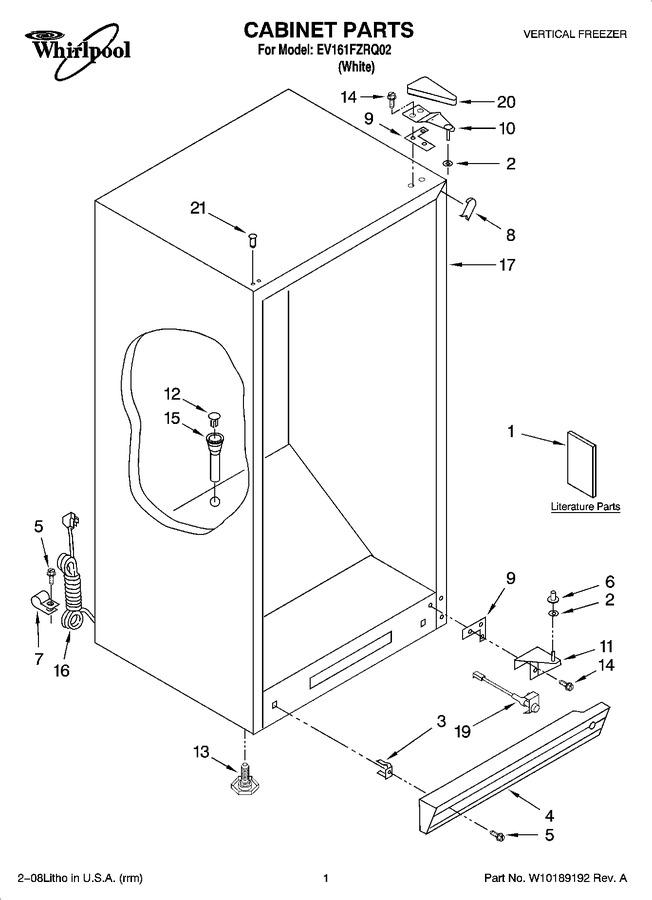

01 - Cabinet Parts
02 - Liner Parts
03 - Unit Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8210432 | Owners Manual |
|
- | |||||
| 1 | W10189193 | Energy Label/tag |
|
- | |||||
| 2 | W10851331 | Washer, Door Spacer (Replaces: 4390520) |
|
$ 9.51 | |||||
| 3 | 1-80247-101 | Clip, Grille (Replaces: 4356803) |
|
Immediately | $ 9.86 | ||||
| 4 | 8210293 | Grille |
|
$ 40.70 | |||||
| 5 | 4357139 | Screw |
|
$ 6.57 | |||||
| 6 | 4390659 | Bushing, Hinge |
|
- | |||||
| 7 | 488946 | Clamp, Tube (Replaces: 4356643) |
|
$ 18.41 | |||||
| 8 | 8210227 | Corner Filler (2) |
|
- | |||||
| 9 | 4390489 | Shim, Bottom |
|
$ 6.26 | |||||
| 10 | 2-81016-105 | Hinge, Top (Replaces: 8210222) |
|
$ 37.06 | |||||
| 11 | 8210238 | Hinge, Bottom |
|
$ 38.28 | |||||
| 12 | 4357019 | Drain Plug |
|
- | |||||
| 13 | W11117769 | Leg, Leveler (Replaces: 4390866) |
|
Immediately | $ 16.61 | ||||
| 14 | WP8204624 | Screw (Replaces: 4356830) |
|
$ 14.99 | |||||
| 15 | 4357269 | Grommet, Drain |
|
- | |||||
| 16 | 8210375 | Cord, Power |
|
- | |||||
| 19 | 4390905 | Power Light Assembly |
|
- | |||||
| 20 | 4357279 | Hinge Cover |
|
$ 46.56 | |||||
| 21 | WP2189000 | Plug, Hole (white) (Replaces: 4390596) |
|
Immediately | $ 6.66 |
