SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts, Optional Parts (not Included)

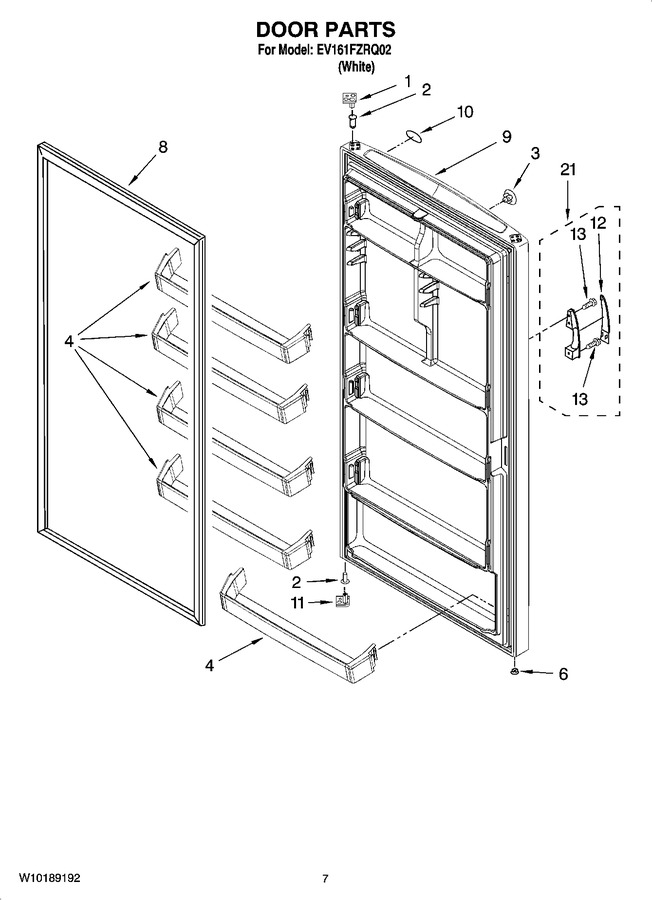

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8210401		Stop, Door (top) (white)		Appelez-nous	-
2	4390659		Hinge, Bushing		Appelez-nous	-
3	WP2189000		Plug-handle   (Replaces: 4390596)			Immediately	$ 6.66
4	W10737497		Rail, Door (5)   (Replaces: 8210385)				$ 82.92
6	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 9.72
8	WP4-65151-001		Gasket, Door   (Replaces: 8210340)				$ 303.88
9	8210363		Door Assembly (includes Interior Liner)				$ 750.11
10	4390656		Nameplate		Appelez-nous	-
11	8210400		Stop, Door (bottom) (natural)		Appelez-nous	-
12	4390668		Insert, Handle		Appelez-nous	-
13	WP489491		Screw   (Replaces: 4390669)				$ 6.26
21	4390667		Handle Assembly (includes Items 12 & 13)		Appelez-nous	-
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 106.15
	WP505587		Sealer, Master (1 Qt.)   (Replaces: 505587)			Immediately	$ 156.56
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 208.40
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	212643		Sealer, Gum (4 Feet)			Immediately	$ 73.92
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77

    View Diagram in Separate Window       Print Part List
