SELECT A DIAGRAM

01 - Cabinet, Lit/optional


02 - Liner


03 - Door


04 - Unit

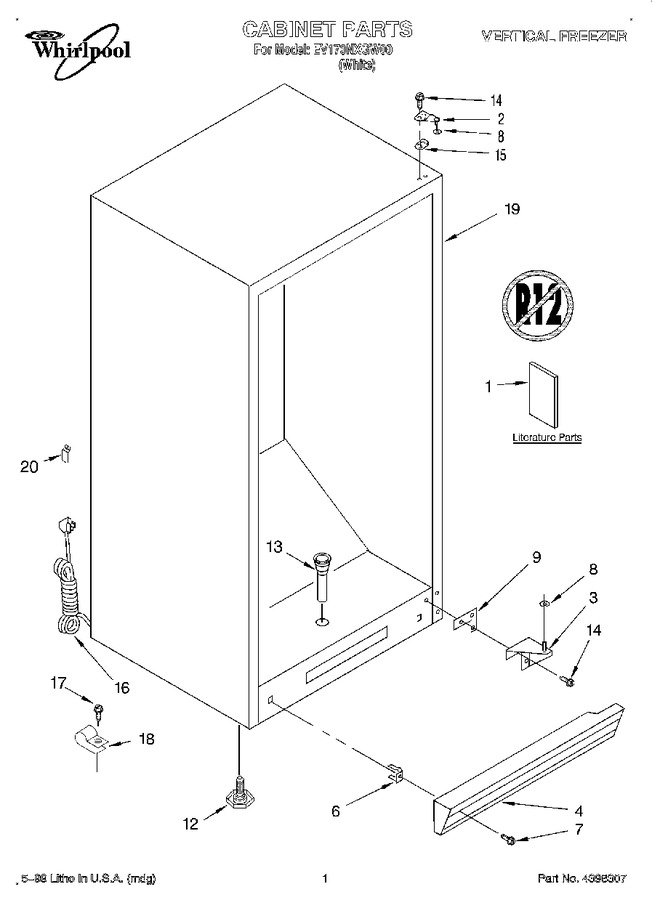

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4357296		Literature Parts (energy Guide)		Appelez-nous	-
1	LIT4356948		Literature Parts (use & Care Guide)		Appelez-nous	-
2	4357052		Top, Hinge		Appelez-nous	-
3	4357250		Bottom Hinge		Appelez-nous	-
4	WP4-60461-005		Grille (black) (includes 6 & 7)   (Replaces: 4357218)				$ 100.70
6	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 9.86
7	WP489478		Screw   (Replaces: 4356805)				$ 6.98
8	W10851331		Washer   (Replaces: 4390520)				$ 9.51
9	4356828		Shim, Bottom				$ 12.40
12	W11117769		Leg, Leveller   (Replaces: 4390567)			Immediately	$ 16.61
13	4357268		Drain Hose		Appelez-nous	-
14	WP8204624		Screw   (Replaces: 4356830)				$ 14.99
15	4390489		Shim, Hinge				$ 6.26
16	4357278		Power Cord		Appelez-nous	-
17	4357139		Screw				$ 6.57
18	4357159		Clamp		Appelez-nous	-
19	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
20	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
20	WP505587		Sealer, Master (1 Qt.)   (Replaces: 505587)			Immediately	$ 156.56
20	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 208.40
20	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
20	4356728		Clip		Appelez-nous	-
20	350930		Xenamel, White (13 Oz. Spray Can)   (Replaces: 799343)			Immediately	$ 34.39
20	212643		Sealer, Gum (4 Feet)			Immediately	$ 73.92
20	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
20	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 106.15

    View Diagram in Separate Window       Print Part List
