SELECT A DIAGRAM

01 - Cabinet, Lit/optional


02 - Liner


03 - Door


04 - Unit

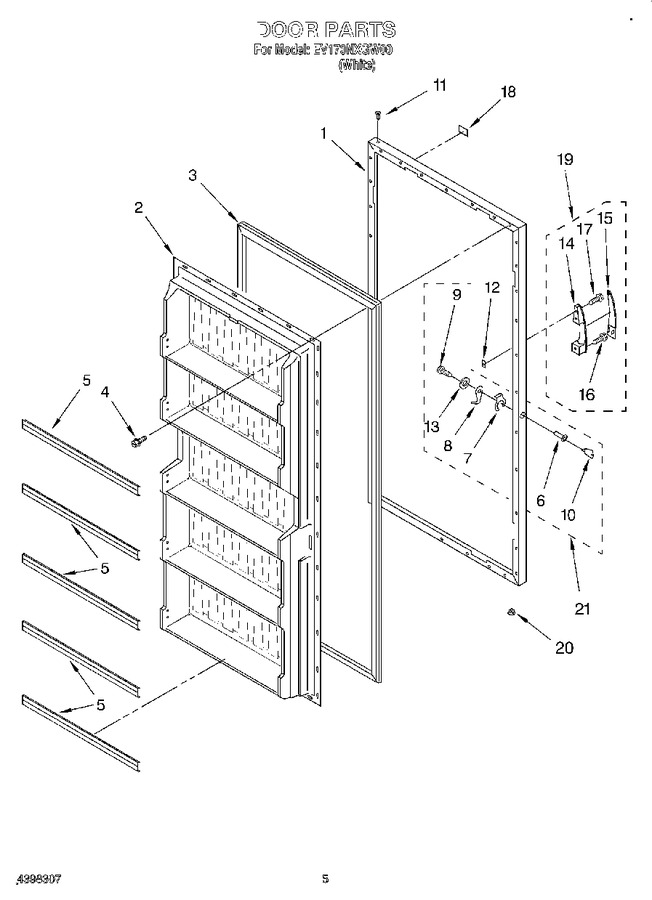

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4357297		Exterior Door (includes Insulation)		Appelez-nous	-
2	4357220		Interior Panel		Appelez-nous	-
3	WP4357142		Gasket   (Replaces: 4357142)			Immediately	$ 251.97
4	4390598		Screw   (Replaces: 4357290)				$ 18.89
5	4356813		Trim Shelf		Appelez-nous	-
6	4357145		Lock, Body   (Replaces: 4356839)				$ 23.82
7	4356842		Spring, Clip Mounting				$ 12.24
8	4357289		Lock, Bolt				$ 22.23
9	WP489478		Screw, Lock Bolt   (Replaces: 4356843)				$ 6.98
10	WP4356840		Key   (Replaces: 4356840)				$ 9.67
11	4356811		Bushing		Appelez-nous	-
12	4356812		Anchor, Screw		Appelez-nous	-
13	4356992		Washer		Appelez-nous	-
14	4357035		Handle		Appelez-nous	-
15	4390579		Insert, Handle		Appelez-nous	-
16	W10709795		Screw (long)   (Replaces: 4390511)				$ 11.82
17	WP3-24004-109		Screw (short)   (Replaces: 4390510)				$ 7.25
18	4356940		Nameplate		Appelez-nous	-
19	4357298		Handle Kit (includes Items 14, 15, 16 & 17)		Appelez-nous	-
20	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 9.72
21	4357145		Lock Kit (includes Items 6, 7, 8, 9, 10 & 13)				$ 23.82

    View Diagram in Separate Window       Print Part List
