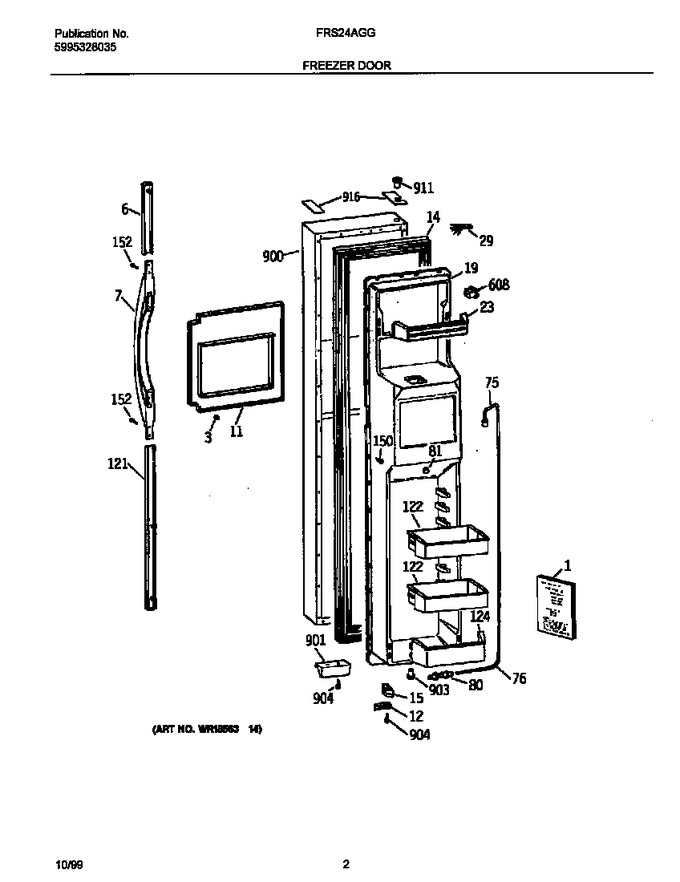

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304406358 | Fastener-tubular,(2) |
|
- | |||||
| 6 | 5304406663 | Trim-handle,black ,upper ,(2) |
|
- | |||||
| 7 | 5304406665 | Handle-door,black ,(2) |
|
- | |||||
| 11 | 5304406668 | Trim-disp Recess,black |
|
- | |||||
| 12 | 5304406361 | Door Stop,(2) |
|
- | |||||
| 14 | 5304406363 | Gasket-frzr Door,black ,magnetic |
|
- | |||||
| 15 | 5304406365 | Door Closer,cam ,black ,frzr Section |
|
- | |||||
| 19 | 5304413798 | Panel-inner Door,frzr Section |
|
- | |||||
| 23 | 5304406367 | Rack-door,top-frzr |
|
- | |||||
| 29 | 5304413822 | Wiring Harness,frzr Door |
|
- | |||||
| 75 | 5304413799 | Tube-water,frzr Door ,w/grommet |
|
- | |||||
| 76 | 5304406370 | Sleeve-water Tube |
|
- | |||||
| 80 | 5304406353 | Nut-compression,5/16 ,(3) ,union |
|
- | |||||
| 81 | 5304413800 | Plug Button,inner Dr Panel |
|
- | |||||
| 121 | 5304406669 | Trim-handle,black ,lower ,(2) |
|
- | |||||
| 122 | 5304406372 | Bin-door,(2) |
|
- | |||||
| 124 | 5304406373 | Rack-door,bottom-frzr ,w/end Caps |
|
- | |||||
| 150 | 5304406374 | Screw-panel Mtg,8-15 ,(84) |
|
- | |||||
| 152 | 5304406671 | Screw-handle Mtg,flat Head ,8-18ab X 5/8 S,(8) |
|
- | |||||
| 608 | 5304406376 | Switch-light/lamp,frzr Door |
|
- | |||||
| 900 | 5304406632 | Panel-frzr Door,black ,w/foam Insul |
|
- | |||||
| 901 | 5304406379 | Strike-door,black ,(2) ,magnetic |
|
- | |||||
| 903 | 5304406382 | Bearing-door Hinge,black ,bottom |
|
- | |||||
| 904 | 5304406383 | Screw,10-32 X 1 ,(12) |
|
- | |||||
| 911 | 5304406385 | Bearing-door Hinge,black ,top ,(2) |
|
- | |||||
| 916 | 5304406674 | Corner Cover-door,black ,hinge Side |
|
- | |||||
| 1A | 5304464438 | Capacitor-run,220 Vac ,15 Microfarad (Replaces: 218909901) |
|
Immediately | $ 35.38 | ||||
| 1B | 5304413835 | Technical Guide,mini Manual ,wiring Diagram |
|
- |
