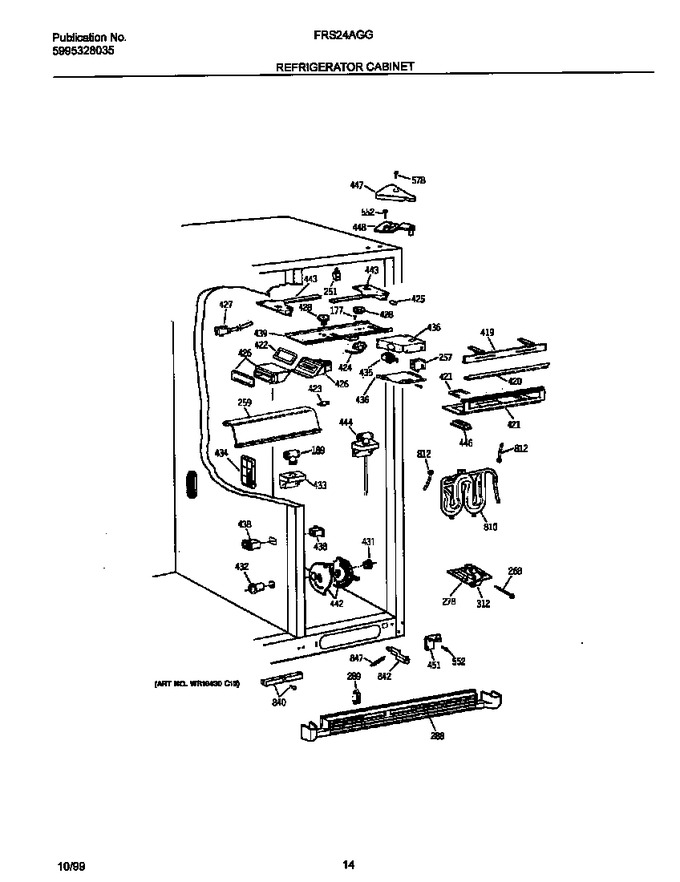

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 177 | 5304406552 | Screw,hex Head ,8-18a X 0.500 ,(5) |
|
- | |||||
| 189 | 5304406553 | Socket-light/lamp,e12 |
|
- | |||||
| 251 | 5304406554 | Support,twist Mt ,(2) |
|
- | |||||
| 257 | 5304406555 | Timer-defrost |
|
- | |||||
| 259 | 5304406556 | Light Shield,refr Section ,lower |
|
- | |||||
| 268 | 5304406557 | Screw-roller Mtg,(2) |
|
- | |||||
| 278 | 5304406558 | Roller Assy,front ,(2) |
|
- | |||||
| 288 | 5304406559 | Grille/kickplate,black |
|
- | |||||
| 289 | 5304406561 | Clip-grille,(2) |
|
- | |||||
| 312 | 5304413807 | Roller,(2) ,wheel Only |
|
- | |||||
| 419 | 5304406562 | Bezel-control |
|
- | |||||
| 420 | 5304406563 | Trim-bezel,extrusion |
|
- | |||||
| 422 | 5304406567 | Gasket-damper,foam Block |
|
- | |||||
| 423 | 5304406568 | Support-lt Shield,top ,(2) |
|
- | |||||
| 425 | 5304406571 | Knob-control |
|
- | |||||
| 427 | 5304406653 | Wiring Harness,control Module |
|
- | |||||
| 431 | 5304406578 | Cap-air Duct,meat Pan Damper |
|
- | |||||
| 432 | 5304406579 | Duct-air,meat Pan Damper ,round |
|
- | |||||
| 434 | 5304406582 | Grille-air Return |
|
- | |||||
| 439 | 5304413809 | Control-slide |
|
- | |||||
| 442 | 5304406588 | Damper-air,meat Pan Duct |
|
- | |||||
| 444 | 5304413810 | Housing/socket Assy,refr Section ,lower |
|
- | |||||
| 446 | 5304406591 | Grille-light Shield |
|
- | |||||
| 447 | 5304406472 | Cover-upper Hinge,black ,refr Section |
|
- | |||||
| 448 | 5304413803 | Bracket-upper Hinge,refr Section |
|
- | |||||
| 451 | 5304406593 | Bracket-lower Hinge,black ,refr ,w/hinge Pin |
|
- | |||||
| 552 | 5304406375 | Screw,12-24tt X 0.900 ,(12) |
|
- | |||||
| 578 | 5304406477 | Screw-hinge Cover,8-32 X 0.375 ,(2) |
|
- | |||||
| 810 | 5304406594 | Water Tank Assy |
|
- | |||||
| 840 | 5304406598 | Magnet & Cover Assy,black |
|
- | |||||
| 840 | 5304406597 | Screw,8-32 X 0.875 ,magnet Mtg ,(3) |
|
- | |||||
| 842 | 5304406601 | Lever-door Closer,black ,refr Section |
|
- | |||||
| 847 | 5304406484 | Spring-door Closer,(2) |
|
- | |||||
| 421A | 5304413808 | Light Shield Assy,refr Section ,upper |
|
- | |||||
| 421B | 5304406564 | Gasket-light Shield |
|
- | |||||
| 424A | 5304406569 | Control-temperature |
|
- | |||||
| 424B | 5304406570 | Sleeve-temp Sensor,vinyl |
|
- | |||||
| 426A | 5304413833 | Damper Assy-air |
|
- | |||||
| 426B | 5304406573 | Duct-air,foam |
|
- | |||||
| 426C | 5304406574 | Gasket-air Duct |
|
- | |||||
| 428A | 5304406576 | Gear-pinion,rs |
|
- | |||||
| 428B | 5304406577 | Gear-pinion,ls |
|
- | |||||
| 433A | 5304406581 | Socket-terminal,white |
|
- | |||||
| 433B | 5304406580 | Housing-lamp Socket |
|
- | |||||
| 435A | 5304406550 | Socket-light/lamp |
|
- | |||||
| 435B | 316538904 | Lamp,40 W ,120 V ,(4) (Replaces: 5304406549) |
|
Immediately | $ 20.48 | ||||
| 436A | 5304406583 | Control Box,bottom |
|
- | |||||
| 436B | 5304406584 | Control Box,top |
|
- | |||||
| 438A | 5304406585 | Duct-air,refr Mullion ,rectangular |
|
- | |||||
| 438B | 5304406586 | Duct-air,frzr Mullion ,rectangular |
|
- | |||||
| 443A | 5304406589 | Rack-gear,air Control ,ls |
|
- | |||||
| 443B | 5304406590 | Rack-gear,air Control ,rs |
|
- | |||||
| 812A | 5304406595 | Tubing-water,plastic ,dispenser Tank |
|
- | |||||
| 812B | 5304406596 | Tubing-water,plastic ,dispenser Tank |
|
- |
