SELECT A DIAGRAM

01 - Cabinet, Literature

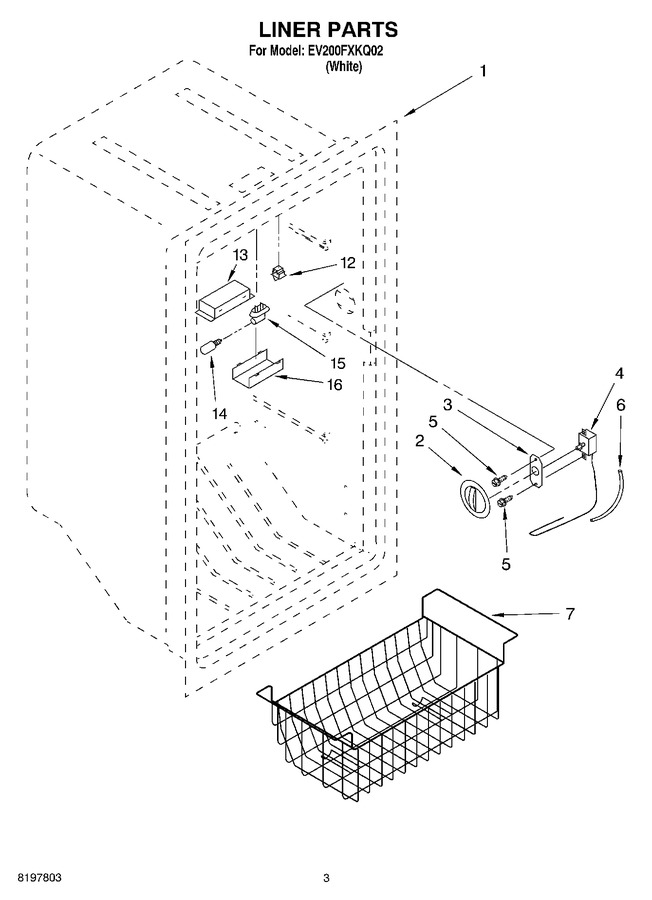

02 - Liner


03 - Unit


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	4390619		Control Knob		Appelez-nous	-
3	1-81154		Control Plate   (Replaces: 4357041)				$ 12.86
4	4390620		Thermostat		Appelez-nous	-
5	WPW10068250		Screw   (Replaces: 4357042)				$ 3.66
6	WP2196003		Tubing, Thermostat   (Replaces: 4356800)				$ 7.16
7	4390698		Basket		Appelez-nous	-
12	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 33.51
13	4390626		Bracket		Appelez-nous	-
14	W10873798		Bulb, Light   (Replaces: 4356311)			Immediately	$ 12.53
15	4356874		Socket, Light		Appelez-nous	-
16	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 106.15
16	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
16	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
16	212643		Sealer, Gum (4 Feet)			Immediately	$ 73.92
16	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
16	WP505587		Sealer, Master (1 Qt.)   (Replaces: 505587)			Immediately	$ 156.56
16	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 208.40
16	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
16	4390615		Shield, Light		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
