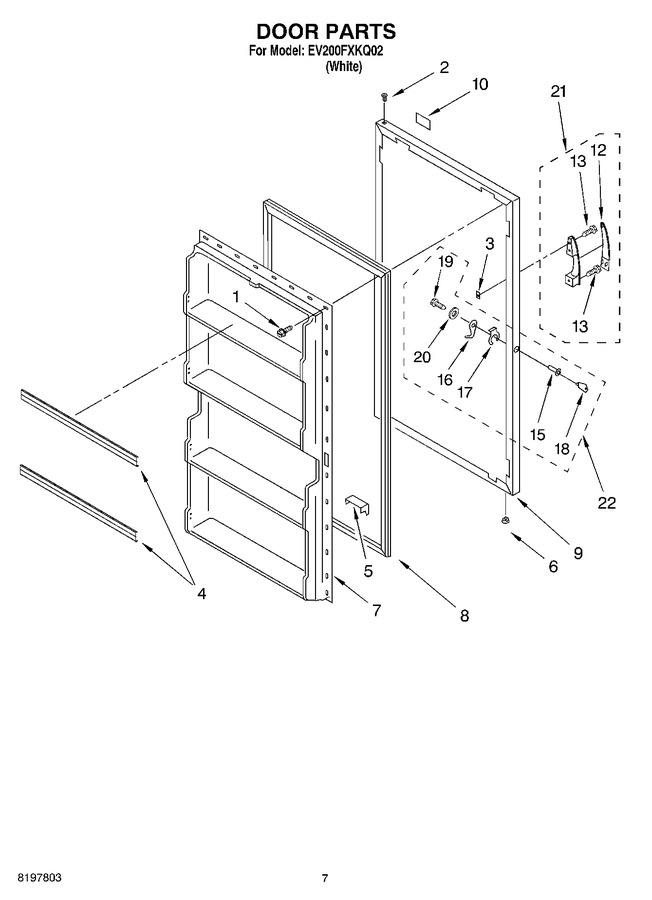

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390598		Screw   (Replaces: 4357290)				$ 18.89
2	4390659		Hinge, Bushing		Appelez-nous	-
3	4390680		Anchor, Screw		Appelez-nous	-
4	4390702		Door Shelf Trim (4)		Appelez-nous	-
5	4356893		Foam Block		Appelez-nous	-
6	3-24898-007		Vent Plug   (Replaces: 4356894)				$ 9.72
7	4390701		Interior Door		Appelez-nous	-
8	WP4-81049-001		Door Gasket   (Replaces: 4357120)				$ 327.91
9	4390845		Door, Exterior		Appelez-nous	-
10	4390670		Nameplate		Appelez-nous	-
12	4390668		Insert, Handle		Appelez-nous	-
13	WP489491		Screw   (Replaces: 4390669)				$ 6.26
15	4357145		Lock, Body   (Replaces: 4356839)				$ 23.82
16	4357224		Lock, Bolt		Appelez-nous	-
17	4356842		Spring Clip				$ 12.24
18	WP4356840		Key   (Replaces: 4356840)				$ 9.67
19	WP489478		Screw   (Replaces: 4356843)				$ 6.98
20	4356992		Washer		Appelez-nous	-
21	4390667		Handle Assembly (includes Items 12 & 13)		Appelez-nous	-
22	4357145		Lock Assembly (includes Items 15, 16, 17, 18, 19 & 20)				$ 23.82
