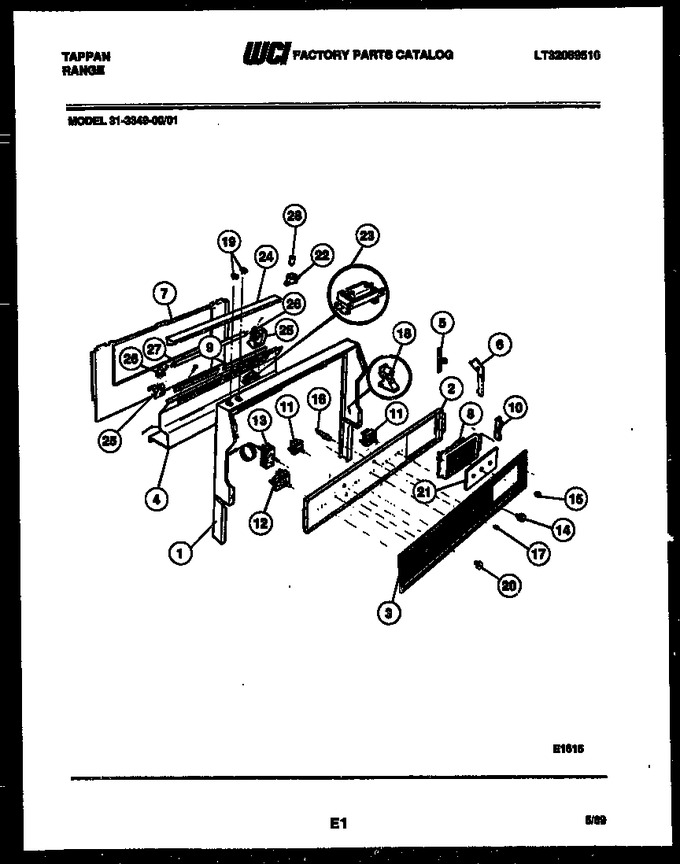

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204843		Trim-wrapper		Appelez-nous	-
2	3203536		Plate - Inst. Mtg		Appelez-nous	-
3	3204752		Panel - Control		Appelez-nous	-
4	3204844		Trim-lower Spl.-white		Appelez-nous	-
5	3204753		Trim - Glass Ret Lh		Appelez-nous	-
6	3204746		Cap-end Lh		Appelez-nous	-
7	3131123		Shield-rr. Wall		Appelez-nous	-
8	3204766		Clock		Appelez-nous	-
9	3131145		Glass, Work Light (2)		Appelez-nous	-
10	3201700		Retainer-cl. Gl. (2)		Appelez-nous	-
11	08010418		Switch-top Elements (4)		Appelez-nous	-
12	3051316		Switch-selector		Appelez-nous	-
13	3202350		Thermostat-oven		Appelez-nous	-
14	3204751		Knob-top Element (4)		Appelez-nous	-
15	3131472		Knob-clock (3)		Appelez-nous	-
16	3091462		Indicator-light Oven		Appelez-nous	-
17	08037703		Lens		Appelez-nous	-
18	3131237		Support-backgrnd (2)		Appelez-nous	-
19	3203080		Switch-rocker (2)		Appelez-nous	-
20	3204745		Bushing-cont Shaft		Appelez-nous	-
21	3201695		Glass-clock Lens		Appelez-nous	-
22	3204842		Receptacle, Starter		Appelez-nous	-
23	3051115		Ballast		Appelez-nous	-
24	3201738		Shield-fluor Light		Appelez-nous	-
25	3131576		Bracket-fluor Light Mtg Lh		Appelez-nous	-
26	3051222		Receptacle - Fluor Light Lh		Appelez-nous	-
27	3131275		Bulb-fluor				$ 49.40
28	680T002P01		Starter		Appelez-nous	-
14A	3204841		Knob-selector		Appelez-nous	-
14B	3204749		Knob - Thermostat		Appelez-nous	-
16A	08037896		Indicator-light S/u		Appelez-nous	-
17A	3051224		Retainer-lens (2) (non-illustrated)		Appelez-nous	-
25A	3131577		Bracket-fluor Light Mtg Rh		Appelez-nous	-
26A	3051223		Receptacle - Fluor Light Rh		Appelez-nous	-
27A	3131468		Bracket-backguard (non-illustrated)		Appelez-nous	-
5A	3204754		Trim - Glass Ret Rh		Appelez-nous	-
6A	3204747		Cap-end Rh		Appelez-nous	-
