02 - Drawer Parts


03 - Door Parts


04 - Cooktop Parts


05 - Broiler Parts


06 - Backguard


07 - Body Parts

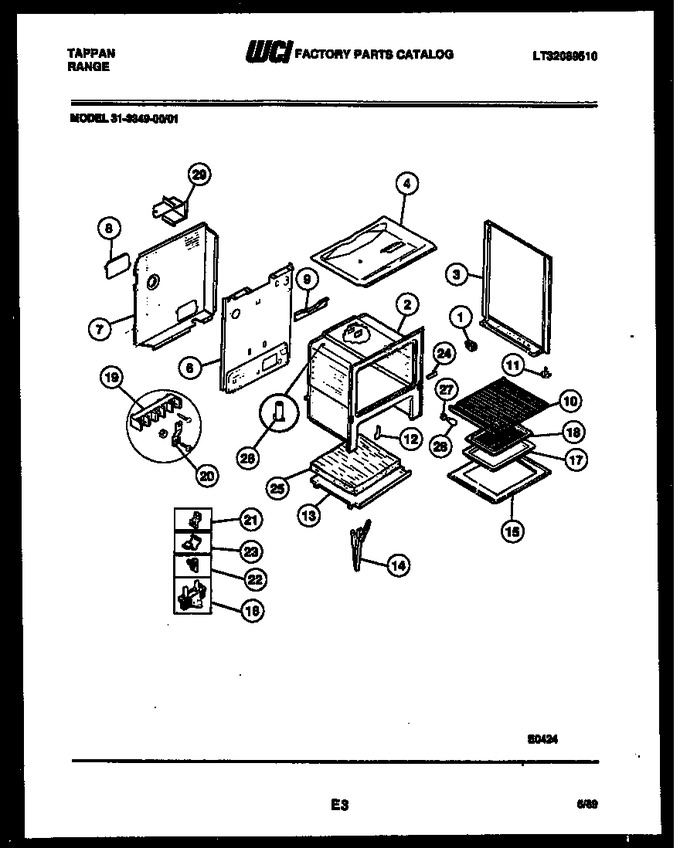

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spcr. Bodyside (8)				$ 3.62
3	3200792		Panel B/s Lh-white		Appelez-nous	-
4	3017926		Burner Box		Appelez-nous	-
6	3203082		Back-main		Appelez-nous	-
7	3203549		Shield-lower Wall		Appelez-nous	-
8	3203405		Cover-lower Access		Appelez-nous	-
9	3051368		Cover-flue		Appelez-nous	-
10	3131973		Rack, Oven (2)		Appelez-nous	-
11	3203397		Screw, Level (4)		Appelez-nous	-
12	3131570		Cover-hinge Cutout (2)				$ 7.35
13	3200825		Shield-wool Lower		Appelez-nous	-
14	3131569		Channel, Door Hinge (2)		Appelez-nous	-
15	3203540		Bottom Oven		Appelez-nous	-
16	3051147		Fuse-thermal		Appelez-nous	-
17	3013568		Broiler Pan		Appelez-nous	-
18	3131356		Insert, Broiler Pan		Appelez-nous	-
19	3161116		Terminal Block		Appelez-nous	-
20	08011708		Ground Strap		Appelez-nous	-
21	3011805		Clip-thermal Bulb (2)		Appelez-nous	-
22	3051162		Glide-drawer (2)			Immediately	$ 8.22
23	3051367		Clip-wire		Appelez-nous	-
24	3015372		Cover - Front Main		Appelez-nous	-
25	3051390		Insulation-bottom		Appelez-nous	-
26	3051344		Tube-oven Vent		Appelez-nous	-
27	3014073		Socket-oven Light		Appelez-nous	-
28	3013071		Bulb - Oven Light		Appelez-nous	-
29	3203582		Shield-rear Wall		Appelez-nous	-
*26572	3934056		Anti-tip Kit		Appelez-nous	-
*26572	3204525		Bracket-range Cable Mtg		Appelez-nous	-
*26572	3203550		Plug-button			Immediately	$ 15.22
27A	3017142		Insulation, Wrap (non-illustrated)				$ 193.50
27B	3203541		Insulation, Back (non-illustrated)		Appelez-nous	-
27C	3131903		Bumper				$ 55.36
27D	3131143		Screw-hinge Mount (6) (non-illustrated)		Appelez-nous	-
27E	08067783		Nut, Hex, Brass (6) (non-illustrated)		Appelez-nous	-
3A	3200789		Panel B/s Rh-white		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
