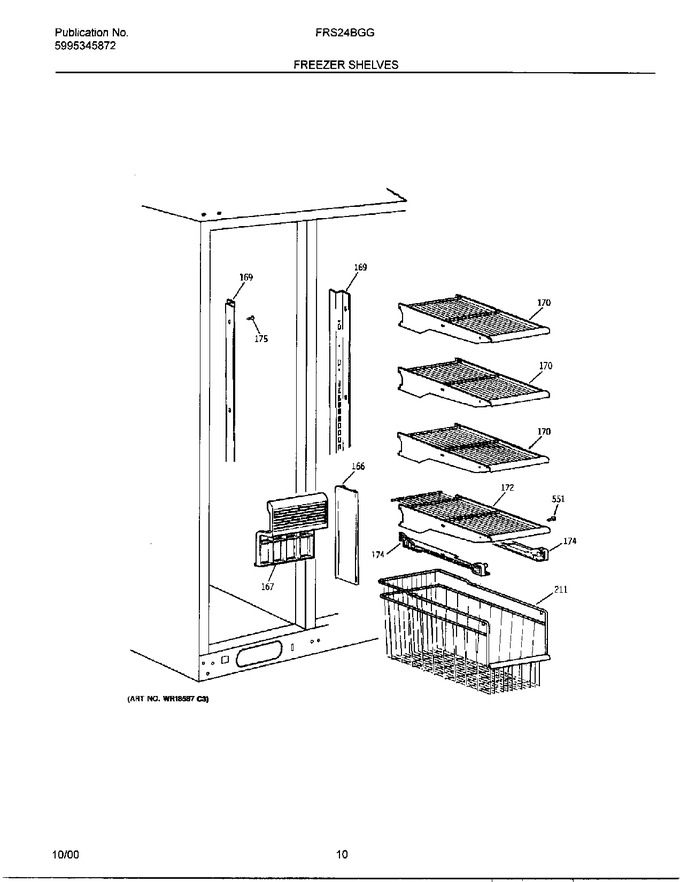

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
166	5304406485		Cover-drain Trough,side ,basket Mount		Appelez-nous	-
167	5304406486		Cover-drain Trough,front		Appelez-nous	-
169	5304406488		Channel-shelf Mtg,rs		Appelez-nous	-
169	5304406487		Channel-shelf Mtg,ls		Appelez-nous	-
170	5304406490		Shelf,cantilever ,half-width ,wire ,(3)		Appelez-nous	-
172	5304406491		Shelf,cantilever ,half-width ,wire ,basket Mtg		Appelez-nous	-
174	5304406492		Hanger-basket,ls		Appelez-nous	-
174	5304406493		Hanger-basket,rs		Appelez-nous	-
175	5304406494		Screw,ind Hex Wshr Hd ,8-18ab X 0.625 ,(18)		Appelez-nous	-
175	5304406641		Screw,ind Hex Wshr Hd ,8-18ab X 0.625 ,(4)		Appelez-nous	-
211	5304406495		Basket,sliding ,frzr		Appelez-nous	-
551	5304406496		Screw-hanger Mtg,round Wshr Head ,8-18ab X 0.625,(2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
