SELECT A DIAGRAM
New Model Search:

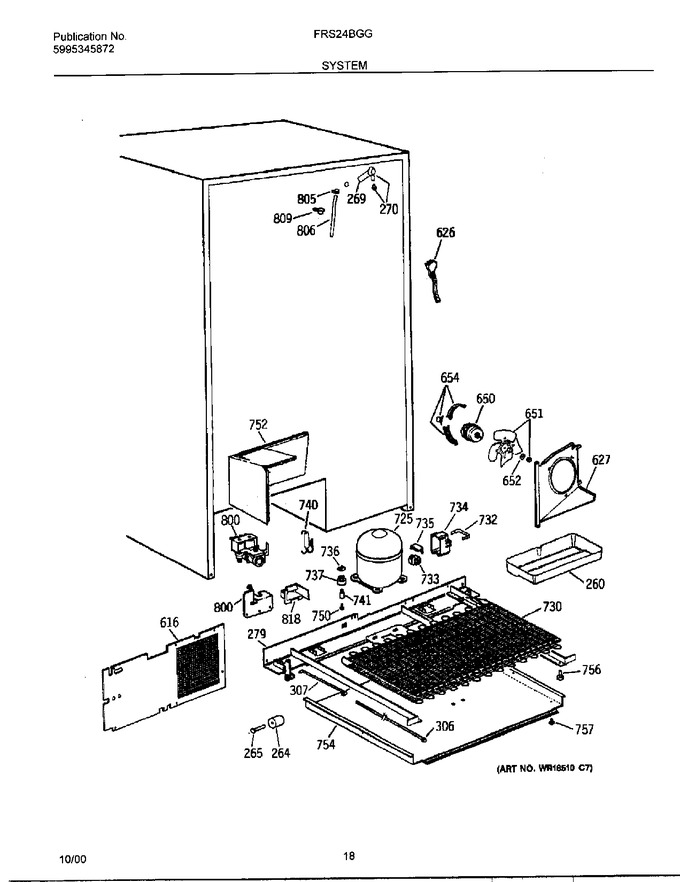

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 260 | 5304406304 | Pan-defrost Drain |
|
- | |||||
| 264 | 5304406305 | Roller,rear ,(2) |
|
- | |||||
| 265 | 5304406306 | Axle-roller,(2) |
|
- | |||||
| 269 | 5304406307 | Tube-water Fill,icemaker |
|
- | |||||
| 270 | 5304406308 | Clamp-hose |
|
- | |||||
| 270 | 5304419382 | Grommet-fill Tube |
|
- | |||||
| 279 | 5304415919 | Rail Assy,compressor Mtg |
|
- | |||||
| 306 | 5304406311 | Screw/rod,rear Roller Adj ,(2) |
|
- | |||||
| 307 | 5304406312 | Link-adj Screw,(2) |
|
- | |||||
| 616 | 5304413815 | Cover-machine Compt |
|
- | |||||
| 626 | 5304406314 | Clamp-power Cord |
|
- | |||||
| 627 | 5304406316 | Housing-cond Fan |
|
- | |||||
| 651 | 5304406319 | Blade-condenser Fan |
|
- | |||||
| 651 | 5304406318 | Nut-lock,fan Blade |
|
- | |||||
| 652 | 5304406320 | Washer,cond Fan Blade |
|
- | |||||
| 654 | 5304406322 | Leg-fan Housing,(3) |
|
- | |||||
| 654 | 5304406321 | Grommet,cond Fan Leg ,(3) |
|
- | |||||
| 732 | 5304406335 | Clamp-terminal Cover |
|
- | |||||
| 734 | 5304406337 | Cover-relay |
|
- | |||||
| 736 | 5304406658 | Clip-compressor Mtg,(3) |
|
- | |||||
| 737 | 5304406659 | Grommet-compr Mtg,(4) |
|
- | |||||
| 741 | 5304406342 | Stud-compressor Mtg,(4) |
|
- | |||||
| 750 | 5304406343 | Screw-compr Stud,10-32tr X 0.500 ,(4) |
|
- | |||||
| 752 | 5304406344 | Insulation,machine Compt |
|
- | |||||
| 754 | 5304413817 | Base Plate-unit |
|
- | |||||
| 756 | 5304406346 | Pad-base Plate,(2) |
|
- | |||||
| 757 | 5304406347 | Fastener,push-in |
|
- | |||||
| 800 | 5304413818 | Bracket-water Valve |
|
- | |||||
| 805 | 5304406351 | Clamp-water Tube |
|
- | |||||
| 806 | 5304406352 | Tube-water Inlet |
|
$ 136.61 | |||||
| 809 | 5304413819 | Fastener-water Tube,(2) |
|
- | |||||
| 818 | 5304415921 | Guard-splash,water Valve |
|
- | |||||
| F626 | 5304406315 | Cord-electric Power |
|
- | |||||
| F650 | 5304406656 | Motor-condenser Fan |
|
- | |||||
| F725 | 5304416278 | Compressor,high Side Assy ,w/electricals |
|
- | |||||
| F730 | 5304406334 | Condenser |
|
- | |||||
| F733 | 5304416279 | Relay/starter-ptcr |
|
- | |||||
| F735 | 5304416280 | Overload Protector |
|
- | |||||
| F740 | 5304406341 | Drier-filter |
|
- | |||||
| F800 | 5304415920 | Valve-water |
|
- |
