SELECT A DIAGRAM

02 - Cabinet


03 - Door, Lit/optional

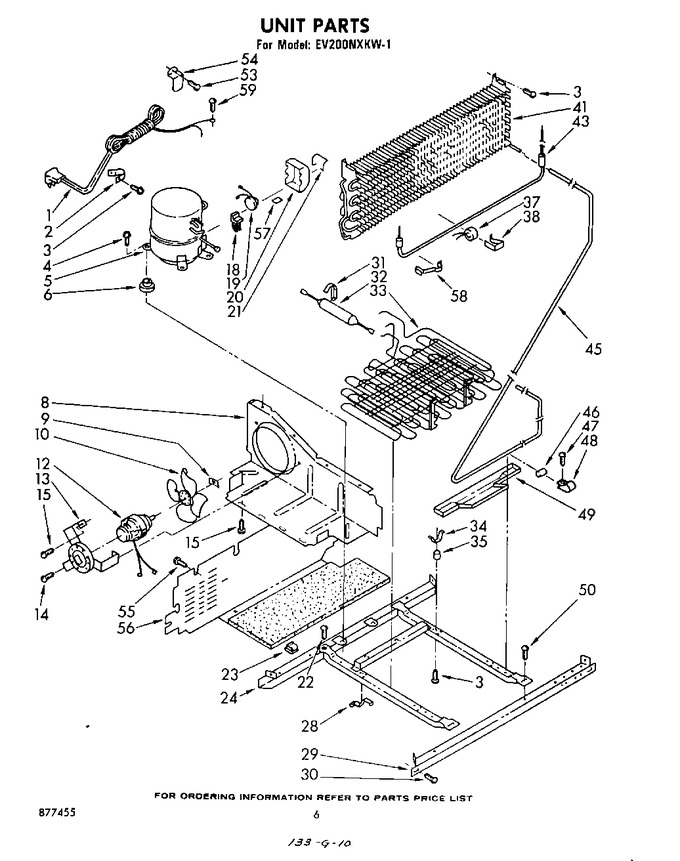

04 - Unit


05 - Liner


06 - Breaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	850626		Cord, Service		Appelez-nous	-
2	549193		Clamp-cord				$ 12.05
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
4	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
5	464109		Compressor		Appelez-nous	-
6	547283		Grommet (4)		Appelez-nous	-
8	850764		Baffle		Appelez-nous	-
9	WP486692		Nut, Speed   (Replaces: 486692)				$ 7.04
10	989524		Blade, Fan		Appelez-nous	-
12	833697		Motor (morrill)   (Replaces: 851445)			Immediately	$ 79.34
13	548695		Bracket, Fan Motor		Appelez-nous	-
14	488868		Screw, 8-36 X 3/8 (3)		Appelez-nous	-
15	488624		Screw, 8 X 3/8		Appelez-nous	-
18	938263		Relay		Appelez-nous	-
19	941583		Overload		Appelez-nous	-
20	549945		Case		Appelez-nous	-
21	531318		Spring		Appelez-nous	-
22	303776		Screw, 8-32 X 5/16 (ground)   (Replaces: 488879)		Appelez-nous	-
23	548745		Clip, Wire (2)		Appelez-nous	-
24	548654		Frame		Appelez-nous	-
28	548744		Clip (2)		Appelez-nous	-
29	941697		Rail, Front		Appelez-nous	-
30	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
31	548508		Clamp		Appelez-nous	-
32	W10843121		Drier   (Replaces: 978246)			Immediately	$ 47.31
33	481851		Condenser & Precooler		Appelez-nous	-
34	548738		Clamp (4)		Appelez-nous	-
35	548737		Grommet (4)		Appelez-nous	-
37	WP4387489		Defrost, Bimetal   (Replaces: 989624)				$ 93.42
38	513584		Clamp		Appelez-nous	-
41	482060		Evaporator		Appelez-nous	-
43	989698		Heater, Defrost		Appelez-nous	-
45	943363		Exchanger, Heat		Appelez-nous	-
46	510769		Dampener (2)		Appelez-nous	-
47	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 19.04
48	510716		Clamp, Tube (2)		Appelez-nous	-
49	989269		Pan, Drip		Appelez-nous	-
50	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
53	486899		Screw, 6-32 X 1/2		Appelez-nous	-
54	653035		Clip, Plug		Appelez-nous	-
55	WPW10141645		Screw, 8 X 1/2a (1)   (Replaces: 489084)				$ 6.90
56	850457		Cover		Appelez-nous	-
57	547272		Bumper		Appelez-nous	-
58	548459		Clip, Heater		Appelez-nous	-
59	978030		Valve, Access (3/4``)				$ 117.64
59	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
59	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
59	978028		Valve, Access (1/2)		Appelez-nous	-
59	978029		Valve Access (5/8``)				$ 93.85
59	488474		Screw, 8-32 X 3/8		Appelez-nous	-
59	978026		Valve, Access (5/16``)			Immediately	$ 115.28

    View Diagram in Separate Window       Print Part List
