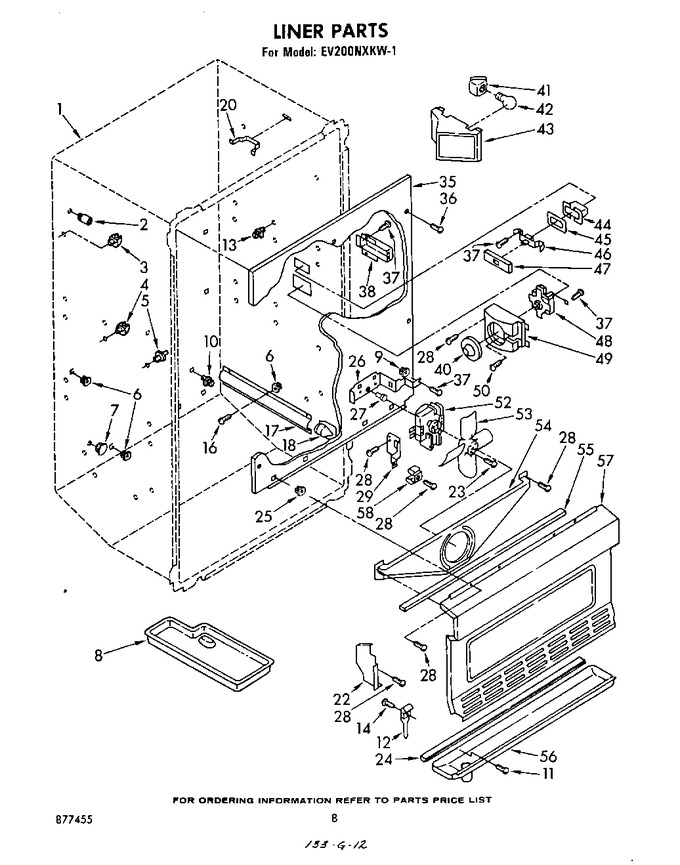

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 657544 | Spacer, Evaporator Mounting (9) |
|
- | |||||
| 3 | 523263 | Stud, Saddle (r.s.) (4) |
|
- | |||||
| 3 | 523264 | Stud, Saddle (l.s.) (4) |
|
- | |||||
| 4 | 509108 | Stud, Shelf (6) |
|
- | |||||
| 5 | 529758 | Stud, Shelf (8) |
|
- | |||||
| 6 | 842339 | Grommet |
|
- | |||||
| 7 | 519890 | Plug, Hole (13) |
|
- | |||||
| 8 | 842041 | Tray, Evaporating |
|
$ 64.92 | |||||
| 9 | 538449 | Grommet |
|
- | |||||
| 10 | 653172 | Stud, Hook (2) |
|
- | |||||
| 11 | 486214 | Screw, 8-15 X 1/2 (5) |
|
- | |||||
| 12 | 849689 | Probe, Heat (includes 14) |
|
- | |||||
| 13 | 651590 | Stud, Hook (2) |
|
- | |||||
| 14 | WP488729 | Screw, 8 X 1/2 (Replaces: 487539) |
|
Immediately | $ 7.01 | ||||
| 16 | WP488729 | Screw, 8 X 1/2 (6) (Replaces: 487909) |
|
Immediately | $ 7.01 | ||||
| 17 | 839827 | Cover, Tube |
|
- | |||||
| 18 | 839826 | Cover, Tube |
|
- | |||||
| 20 | 533998 | Clip, Speed (3) |
|
- | |||||
| 22 | 839883 | Baffle, Evaporator (2) |
|
- | |||||
| 23 | 00487887 | Screw, 3-48 X 1/4 (2) (Replaces: 487887) |
|
$ 220.32 | |||||
| 24 | 849480 | Gasket, Drain Pan |
|
- | |||||
| 25 | 509812 | Grommet (2) |
|
- | |||||
| 26 | 548264 | Bracket (single) |
|
- | |||||
| 27 | 548268 | Grommet (3) |
|
- | |||||
| 28 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 12.62 | |||||
| 29 | 548263 | Bracket (double) |
|
- | |||||
| 35 | 839888 | Duct, Air |
|
- | |||||
| 36 | 488876 | Screw, 8 X 1-1/8 (9) |
|
- | |||||
| 37 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 488500) |
|
$ 9.79 | |||||
| 38 | 836553 | Cover, Insulation |
|
- | |||||
| 40 | 981928 | Knob, Thermostat |
|
- | |||||
| 41 | 4387478 | Socket (Replaces: 851067) |
|
Immediately | $ 99.14 | ||||
| 42 | 8009 | Bulb (Replaces: 527949) |
|
Immediately | $ 16.80 | ||||
| 43 | 848158 | Shield, Light |
|
- | |||||
| 44 | 845051 | Container, Power Saver Switch |
|
- | |||||
| 45 | 845052 | Gasket, Container |
|
- | |||||
| 46 | 845049 | Switch, Power Saver |
|
- | |||||
| 47 | 934924 | Escutcheon, Power Saver |
|
- | |||||
| 48 | VF3 | Thermostat & Barrier Assembly (Replaces: 549092) |
|
$ 38.40 | |||||
| 49 | 843953 | Escutcheon, Thermostat |
|
- | |||||
| 50 | WP965173 | Screw, 8-18 X 3/8 (2) (Replaces: 488110) |
|
Immediately | $ 9.65 | ||||
| 52 | SM999 | Motor, Fan (Replaces: 549098) |
|
Immediately | $ 27.23 | ||||
| 53 | 839859 | Blade, Fan |
|
- | |||||
| 54 | 984684 | Cover, Fan Orifice |
|
- | |||||
| 55 | 659202 | Gasket |
|
- | |||||
| 56 | 839818 | Pan, Drain |
|
- | |||||
| 57 | 839846 | Cover, Evaporator |
|
- | |||||
| 58 | 537095 | Clip, Expansion (2) |
|
- |
