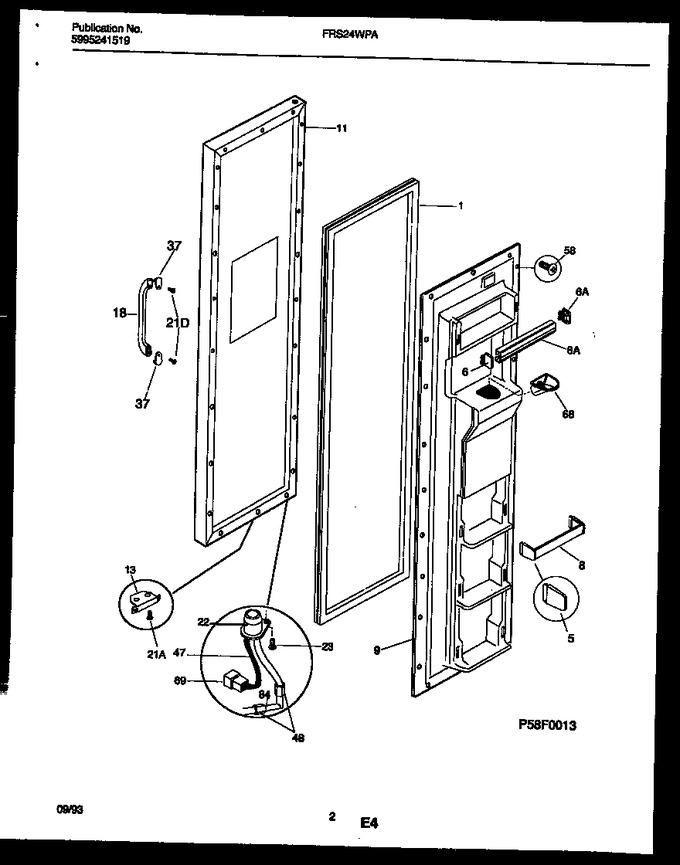

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


08 - Ice Door, Dispenser And Water Tanks


09 - Ice Dispenser


10 - Ice Maker And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734313		Gasket-frzr Door, Magnetic, White				$ 244.78
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
6	5303297813		Support-door Rack, Lh				$ 49.77
8	215864100		Rack-door, W/ End Caps, (3)		Appelez-nous	-
9	215201501		Panel-inner Door, Frzr		Appelez-nous	-
11	215655801		Panel, Frzr Door, White, W/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	215339601		Handle-door, White		Appelez-nous	-
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
37	215361401		Trim, Handle, White		Appelez-nous	-
47	215294000		Harness-wiring,frzr Door		Appelez-nous	-
48	5308000200		Nut, 7/16 X 20, Nylon		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
68	5303297851		Chute-ice		Appelez-nous	-
69	215341900		Connector-door Harn		Appelez-nous	-
84	5308010289		Elbow-water Tube				$ 45.84
*85523	215361200		Foam Strip, Handle Mtg Hole		Appelez-nous	-
*85524	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
21A	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
21D	215659600		Screw-handle Mtg,hex Head, 10-32 X 1/2		Appelez-nous	-
6A	5303297814		Support-door Rack, Rh				$ 52.50
8A	5303297510		Rack-door		Appelez-nous	-
