Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 5303296574 Shelf-freezer, Sliding Wire Appelez-nous -
24 215069004 Frame-refr Shelf, Cantilever, (3) Appelez-nous -
25 5303289587 Cover-storage Pan, Upper & Lower, (2) Appelez-nous -
26 5303289500 Pan-storage,upper Special Order $ 174.74

28 08013638 Cap-protector Appelez-nous -
29 5303289390 Trim-refr Shelf, Front, (3) Appelez-nous -
39 5303289391 Trim-frzr Shelf Appelez-nous -
40 5303289389 Glass-shelf, Refr Shelf, (3) Appelez-nous -
41 5303289388 Trim-refr Shelf, Snap-on, Rear, (3) Appelez-nous -
46 5303300704 Front-storage Pan, Upper & Lower, (2) Appelez-nous -
47 5303289386 Insert-pan Cover, Glass, With White Dots Appelez-nous -
49 5303296573 Basket-sliding Appelez-nous -
51 5303296575 Hanger-basket, Rh Special Order $ 49.78

52 215162502 Hanger, Basket, Lh, With Spring Special Order $ 101.35

57 5303271653 Ferrule-inner Special Order $ 20.27

60 5308010253 Screw Appelez-nous -
96 215192600 Support - Water Tank Special Order $ 10.71

97 5303918258 Water Tank Assy, Includes Tank, Grommets, Connectors   (Replaces: 215230300) Special Order $ 121.63

98 5308015614 Connector - Tube Special Order $ 34.57

99 5300186057 Grommet-tank Special Order $ 28.98

101 5308007097 Screw, Cr Truss Head, 8-15(a) X 3/4 Appelez-nous -
126 215205400 Rail-auger Bucket,lh Special Order $ 64.00

*85532 215339900 Clip, Cantilevr Shlf Special Order $ 5.83

11A 5303296576 Shelf-freezer, Fixed Wire ,(2) Appelez-nous -
126A 215205200 Rail-auger Bucket, Rh (non-illustrated) Appelez-nous -
25A 5303289586 Trim-storage Pan Cvr (non-illustrated) Appelez-nous -
26A 5303289501 Pan-storage,lower Special Order $ 164.85

29A 5303209742 Retainer-glass (non-illustrated) Appelez-nous -
39A 5303289392 Trim-frzr Shelf, (2) Appelez-nous -
41A 5303211351 Lock-shelf Trim, Rear (non-illustrated) Appelez-nous -
47A 5303289387 Insert-pan Cover, Glass, Clear (non-illustrated) Appelez-nous -
57A 5303289064 Ferrule-air Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

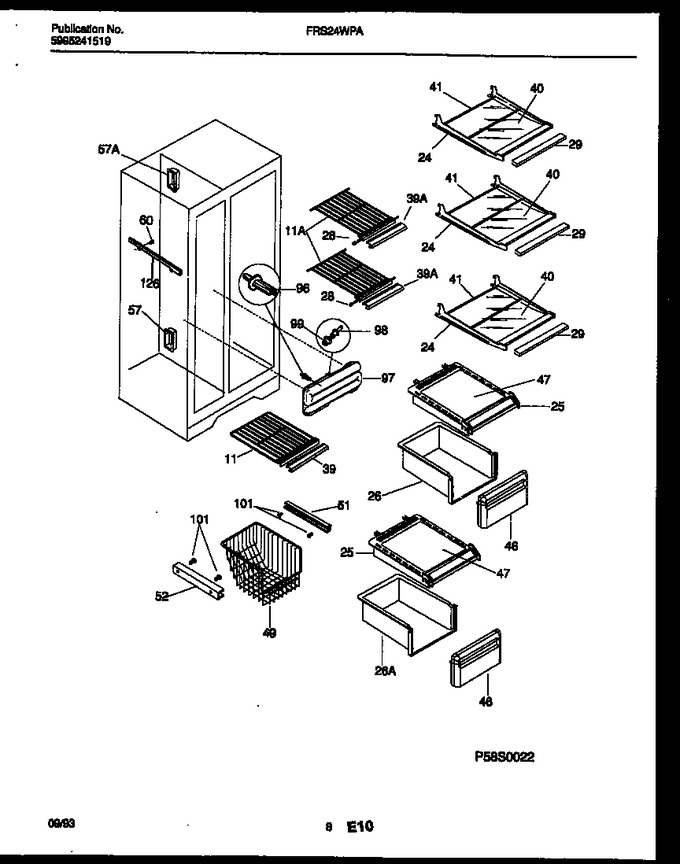

Diagram for FRS24WPAW0
