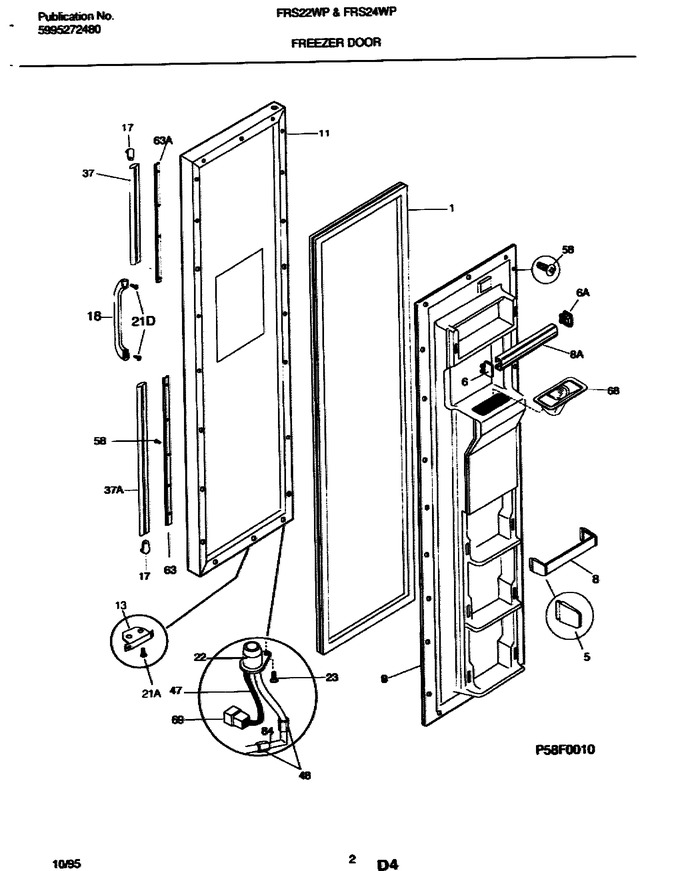

03 - Freezer Door


05 - Refrigerator Door


09 - Cabinet


13 - Shelves


17 - Controls


19 - System


23 - Ice And Water Dispenser


25 - Ice Container Drive


27 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
6	5303297813		Support-door Rack, Lh				$ 49.77
8	215120601		Rack-door, W/end Caps		Appelez-nous	-
9	218510601		Panel-inner Door, Frzr		Appelez-nous	-
11	5303917682		Panel-frzr Door, Almond, W/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
17	215100018		Handle End, Black		Appelez-nous	-
18	215339618		Handle-door, Black		Appelez-nous	-
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
37	215268108		Trim-handle, 15.88``, Black, Upper		Appelez-nous	-
48	5308000200		Nut, 7/16 X 20, Nylon		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
63	215117206		Rail-handle Trim Mtg, Lower		Appelez-nous	-
68	218020600		Chute-ice		Appelez-nous	-
69	215341900		Connector-door Harn		Appelez-nous	-
84	5308010289		Elbow-water Tube				$ 45.84
21A	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21D	215659600		Screw-handle Mfg,hex Head,10-32 X 1/2		Appelez-nous	-
37A	215268110		Trim-handle, 31.46``, Black, Lower		Appelez-nous	-
63A	215117208		Rail-handle Trim Mtg, Upper		Appelez-nous	-
6A	5303297814		Support-door Rack, Rh				$ 52.50
8A	215474043		Rack-door		Appelez-nous	-
F1	215734303		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
F47	218485300		Harness-wiring, Frzr Door		Appelez-nous	-
NI	215598900		Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt		Appelez-nous	-
NI	215361200		Foam Strip, Handle Mtg Hole		Appelez-nous	-
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
