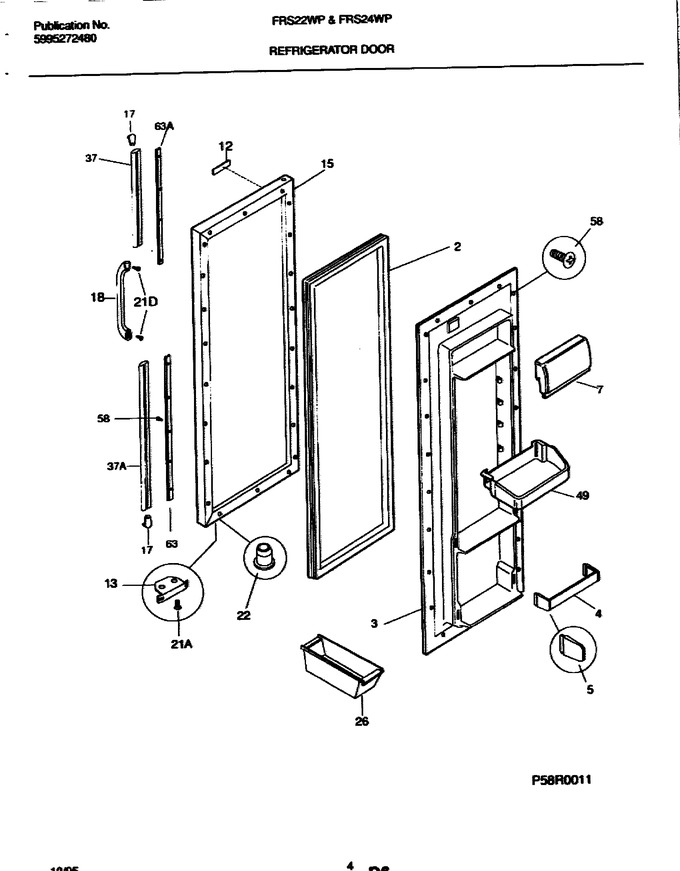

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734304		Gasket-refr Door, Almond, Magnetic		Appelez-nous	-
3	5303296572		Panel, Inner Door, Refr		Appelez-nous	-
4	215120401		Rack-door, W/end Caps		Appelez-nous	-
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
7	5303309825		Door-dairy				$ 174.41
12	218364005		Frame-nameplate, Almond		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double Face		Appelez-nous	-
12	215008602		Label-nameplate, Almond		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	215732211		Panel-refr Door, Almond, W/foam Insulatn		Appelez-nous	-
17	215100018		Handle End, Black		Appelez-nous	-
18	215339618		Handle-door, Black		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
37	215268108		Trim-handle, 15.88``, Black, Upper		Appelez-nous	-
49	218592308		Bin-door, With Trim		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
63	215117206		Rail-handle Trim Mtg, Lower		Appelez-nous	-
21A	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21D	215659600		Screw-handle Mfg,hex Head,10-32 X 1/2		Appelez-nous	-
37A	215268110		Trim-handle, 31.46``, Black, Lower		Appelez-nous	-
63A	215117208		Rail-handle Trim Mtg, Upper		Appelez-nous	-
NI	215361200		Foam Strip, Handle Mtg Hole		Appelez-nous	-
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
