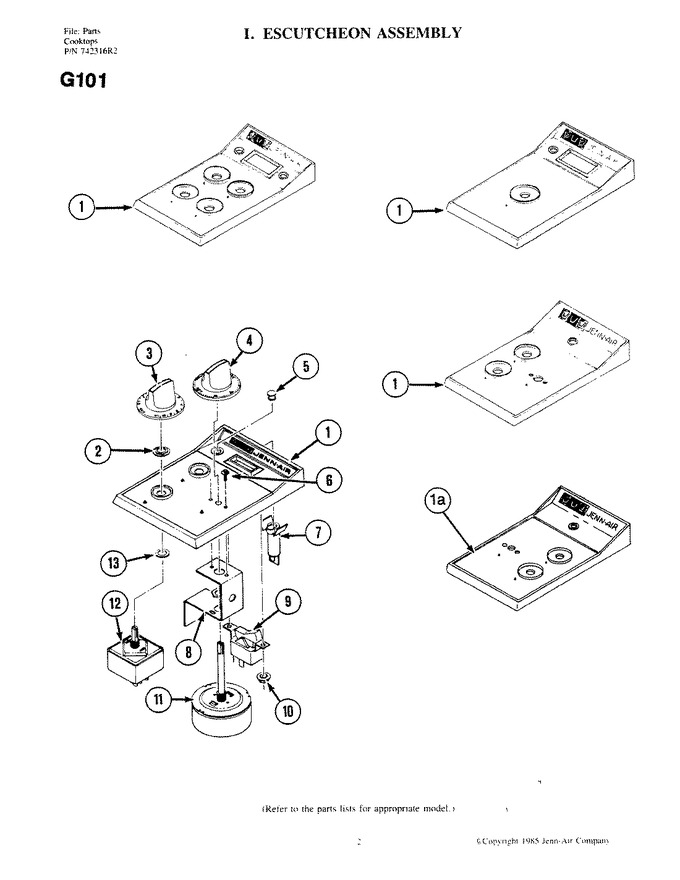

01 - Blower Assembly
02 - Burner Box Assembly
03 - Escutcheon Assembly
04 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701598 | Escutcheon (new W/cast Logo) | 1 |
|
- | ||||
| 2 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 3 | 12200035 | Knob, Switch (Replaces: Y703272) | 5 |
|
Immediately | $ 78.40 | |||
| 3 | WPY700854 | Knob, Switch (Replaces: Y700854) | 1 |
|
Immediately | $ 23.22 | |||
| 4 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 5 | WPY700631 | Lens, Pilot Light (Replaces: Y700631) | 1 |
|
$ 5.09 | ||||
| 6 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 7 | 715396 | Pilot Light & Lens | 1 |
|
- | ||||
| 8 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 9 | 715397 | Switch, Fan | 1 |
|
- | ||||
| 11 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 12 | W11120795 | Switch, Infinite (Replaces: Y703147) | 5 |
|
Immediately | $ 84.20 | |||
| 12 | 700855K | Switch, Infinite (Replaces: Y700855) | 1 |
|
Immediately | $ 121.91 | |||
| 13 | 712179 | Kit, Wire | 5 |
|
- | ||||
| 13 | Y700833 | O Ring | 1 |
|
- | ||||
| 13 | 702026 | Escut Wr Kit | 1 |
|
- | ||||
| 14 | 16000448 | Manual, Service-no Refund | 1 |
|
- |
