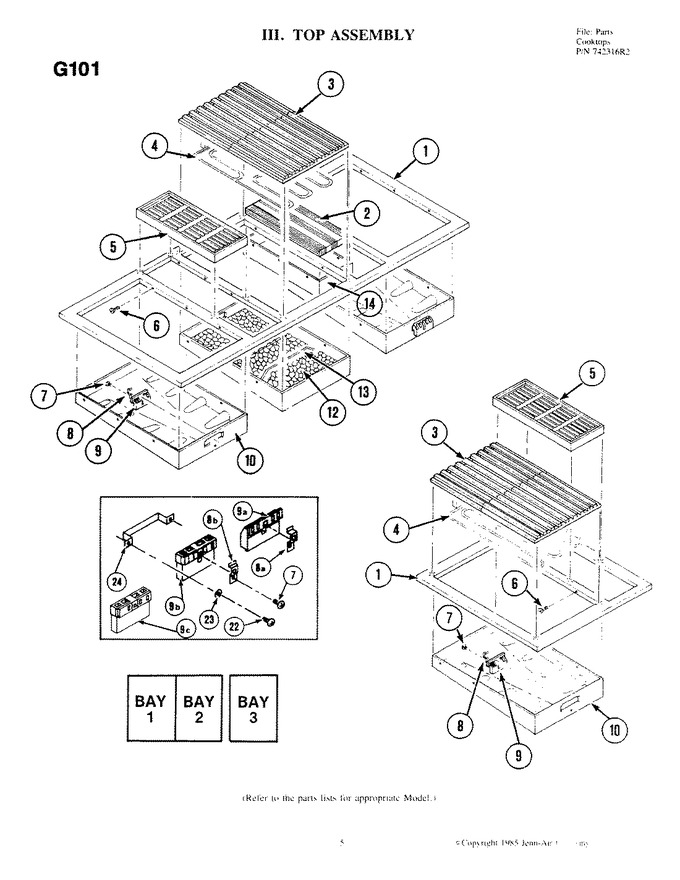

01 - Blower Assembly
02 - Burner Box Assembly
03 - Escutcheon Assembly
04 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE81-04769A | Top 2366 (Replaces: 700668) | 1 |
|
$ 110.79 | ||||
| 2 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 3 | 707886 | Grate | 1 |
|
- | ||||
| 4 | 787834 | Element, Grill | 3 |
|
- | ||||
| 4 | 700491 | Element, Grill | 1 |
|
- | ||||
| 5 | DE81-04768A | Grill, Air (Replaces: 700667) | 1 |
|
$ 109.33 | ||||
| 6 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 | |||
| 7 | WP489128 | Screw (Replaces: Y707341) | 1 |
|
$ 9.79 | ||||
| 8 | 74004835 | Clip (Replaces: Y702699) | 3 |
|
$ 11.37 | ||||
| 8 | 74004835 | Clip (Replaces: 715121) | 1 |
|
$ 11.37 | ||||
| 9 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) | 3 |
|
Immediately | $ 96.61 | |||
| 9 | Y715120 | Receptacle | 1 |
|
$ 24.18 | ||||
| 10 | Y712015 | Wire, Red | 3 |
|
- | ||||
| 10 | Y701490 | Wire, Black | 1 |
|
- | ||||
| 10 | Y701491 | Wire, Red | 1 |
|
- | ||||
| 10 | Y701953 | Pan, Grill (w/brackets) | 1 |
|
- | ||||
| 10 | 701955 | Pan, Grill (lt) | 3 |
|
- | ||||
| 10 | Y712017 | Wire, Black | 3 |
|
- | ||||
| 12 | 708929 | Plate, Rock | 1 |
|
- | ||||
| 13 | 700819 | Support, Rock Plate | 1 |
|
$ 71.81 | ||||
| 22 | WP59002061 | Screw (Replaces: Y707172) | 3 |
|
$ 6.98 | ||||
| 23 | Y707664 | Washer | 3 |
|
- | ||||
| 24 | Y702698 | Bracket | 3 |
|
- |
