01 - Blower Plenum
02 - Burner Box Assembly

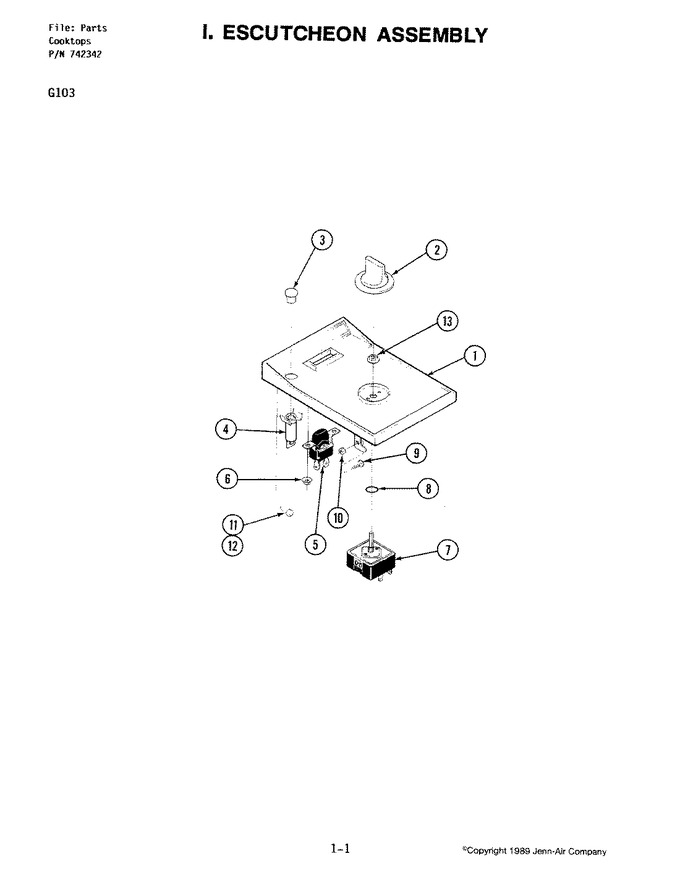

03 - Escutcheon Assembly
04 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701598 | Escutcheon (new W/cast Logo) | 1 |
|
- | ||||
| 2 | 12200035 | Knob, Switch (Replaces: Y703662) | 1 |
|
Immediately | $ 78.40 | |||
| 3 | WPY700631 | Lens, Pilot Light (Replaces: Y700631) | 1 |
|
$ 5.09 | ||||
| 4 | Y702393 | Light, Indicator-120v | 1 |
|
- | ||||
| 5 | 715397 | Switch, Fan | 1 |
|
- | ||||
| 6 | 7103P166-60 | Palnut (Replaces: 715500) | 1 |
|
$ 15.91 | ||||
| 7 | W11120795 | Switch, Infinite (Replaces: Y703147) | 1 |
|
Immediately | $ 84.20 | |||
| 8 | Y700833 | O Ring | 1 |
|
- | ||||
| 9 | WP488234 | Screw (Replaces: 708861) | 1 |
|
$ 6.07 | ||||
| 10 | WP488130 | Nut (Replaces: Y701396) | 1 |
|
$ 6.27 | ||||
| 11 | W11233072 | Screw (Replaces: Y705007) | 1 |
|
Immediately | $ 12.62 | |||
| 12 | Y700834 | Clip | 1 |
|
- | ||||
| 13 | Y712255 | Palnut | 1 |
|
- | ||||
| NI | 16000448 | Manual, Service-no Refund | 1 |
|
- |
