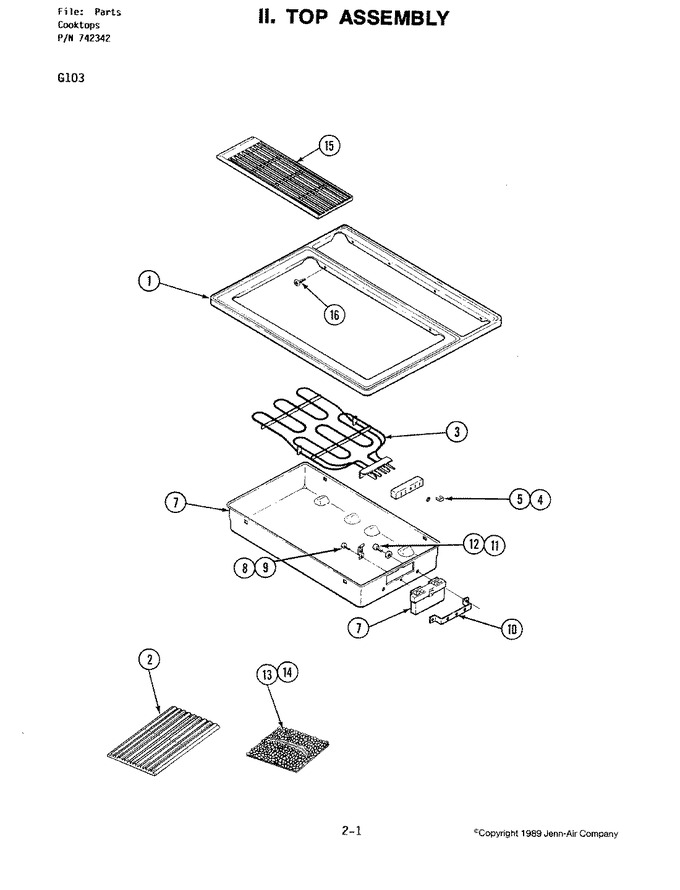

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower Plenum
02 - Burner Box Assembly
03 - Escutcheon Assembly
04 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704983 | Top | 1 |
|
- | ||||
| 2 | 707886 | Grate | 1 |
|
- | ||||
| 3 | 787834 | Element, Grill | 1 |
|
- | ||||
| 4 | WPY708730 | Block, Terminal (Replaces: Y708730) | 1 |
|
Immediately | $ 87.44 | |||
| 5 | Y708862 | Nut, Speed | 1 |
|
$ 13.08 | ||||
| 6 | Y712197 | Wire, Brown | 1 |
|
- | ||||
| 6 | 701955 | Pan, Grill (lt) | 1 |
|
- | ||||
| 6 | Y712203 | Wire, Violet | 1 |
|
- | ||||
| 6 | 712578 | Wire Kit | 1 |
|
- | ||||
| 7 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) | 1 |
|
Immediately | $ 96.61 | |||
| 8 | 74004835 | Clip (Replaces: Y702699) | 1 |
|
$ 11.37 | ||||
| 9 | WP489128 | Screw (Replaces: Y707341) | 1 |
|
$ 9.79 | ||||
| 10 | Y702698 | Bracket | 1 |
|
- | ||||
| 11 | Y707664 | Washer | 1 |
|
- | ||||
| 12 | WP59002061 | Screw (Replaces: Y707172) | 1 |
|
$ 6.98 | ||||
| 13 | 708929 | Plate, Rock | 1 |
|
- | ||||
| 14 | 700819 | Support, Rock Plate | 1 |
|
$ 71.81 | ||||
| 15 | DE81-04768A | Grill, Air (Replaces: 700667) | 1 |
|
$ 109.33 | ||||
| 16 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 |
