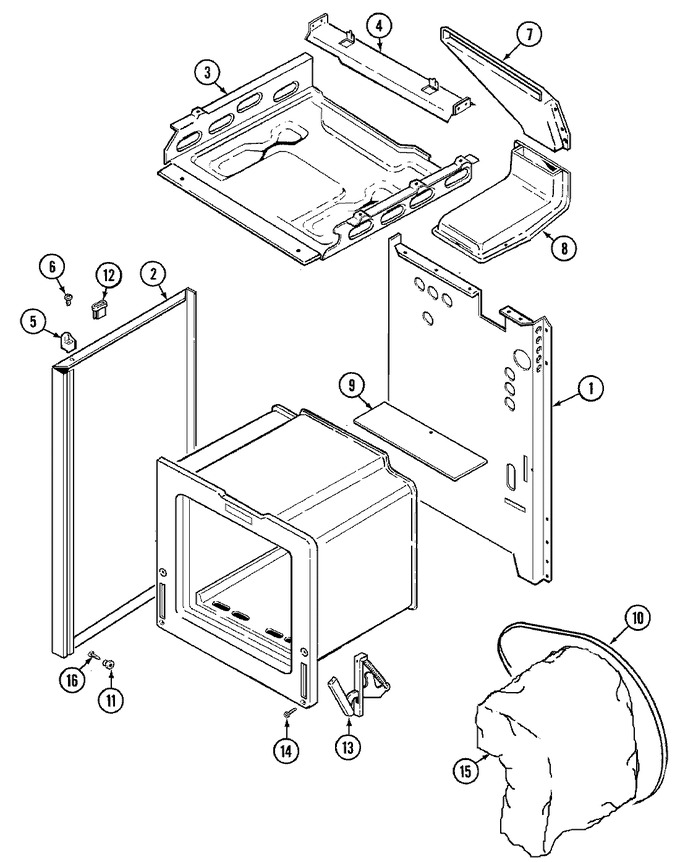

01 - Body
02 - Door/drawer
03 - Gas Controls (g3110prx5k)
04 - Oven/base
05 - Top Assembly/control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F188-80 | Back, Main | 01 |
|
- | ||||
| 2 | 2618F099-62 | Panel, Side (wht) | 12 |
|
- | ||||
| 2 | 2618F085-62 | Panel, Side (wht) | 01 |
|
- | ||||
| 3 | 4011F218-80 | Bottom, Burner Box | 01 |
|
- | ||||
| 4 | 3807F411-51 | Support, Burner | 01 |
|
- | ||||
| 5 | 8010P087-60 | Spacer, Main Top (lt) | 01 |
|
- | ||||
| 5 | 8010P088-60 | Spacer, Main Top (rt) | 01 |
|
- | ||||
| 6 | 7101P313-60 | Screw (8abx3/8-zn) | 01 |
|
- | ||||
| 7 | 4022W005-19 | Extension, Flue Box | 01 |
|
- | ||||
| 8 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 01 |
|
$ 6.47 | ||||
| 8 | 4006W113-45 | Box, Vent | 01 |
|
- | ||||
| 9 | 3807F416-45 | Support, Oven Back | 01 |
|
- | ||||
| 10 | 4820F001-59 | Strap, Retainer | 01 |
|
- | ||||
| 11 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 01 |
|
$ 7.07 | ||||
| 12 | 8007P023-60 | Bushing, Prop | 01 |
|
- | ||||
| 13 | 7106P048-60 | Hinge, Door | 01 |
|
- | ||||
| 14 | WP4159193 | Screw (Replaces: 7101P115-60) | 01 |
|
$ 4.29 | ||||
| 15 | 4804F032-60 | Insulation, Oven Wrapper | 01 |
|
- | ||||
| 15 | 4804F031-60 | Insulation, Oven Back | 01 |
|
- | ||||
| 16 | W11772394 | Screw (Replaces: 7101P334-60) | 01 |
|
Immediately | $ 10.94 |
