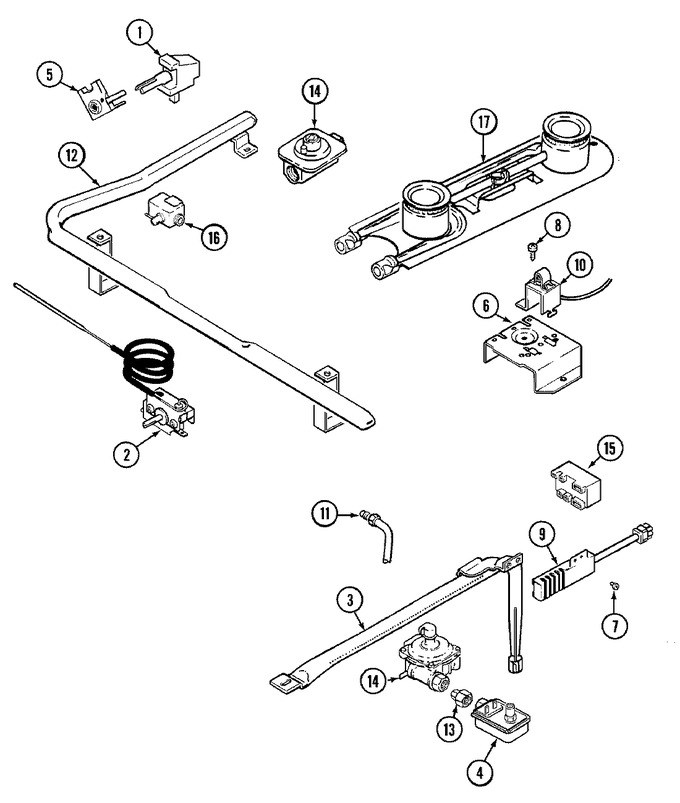

03 - Gas Controls (g3110prx5k)


04 - Oven/base


05 - Top Assembly/control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7502P248-60		Valve, Top Burner	01	Appelez-nous	-
1	7101P044-60		Screw, Valve	01	Appelez-nous	-
2	3604F177-51		Shield, Thermostat	01	Appelez-nous	-
2	7101P280-60		Screw W/washer (blk)	01	Appelez-nous	-
2	7404P087-60		Thermostat	01			$ 197.47
3	3403D023-45		Burner, Oven	01	Appelez-nous	-
4	4005F334-51		Cover, Valve	01	Appelez-nous	-
4	4005F433-51		Cover, Valve	08	Appelez-nous	-
4	7501P124-60		Valve, Oven	01	Appelez-nous	-
4	7501P145-60		Valve, Oven	08	Appelez-nous	-
5	7403P284-60		Switch, Burner	01			$ 55.80
6	3807F426-45		Support, Top Pilot	01	Appelez-nous	-
7	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	01			$ 4.29
8	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	01		Immediately	$ 12.62
9	12400035		Igniter, Oven   (Replaces: 7432P076-60)	01		Immediately	$ 60.44
10	7432P008-60		Igniter, Top (lt)	01	Appelez-nous	-
10	7432P031-60		Igniter, Top (rt)	01	Appelez-nous	-
11	3414F104-44		Tubing - Regulator & Pipe	01	Appelez-nous	-
11	3414F114-44		Tubing	08	Appelez-nous	-
12	7513P159-60		Pipe, Manifold	08	Appelez-nous	-
12	7513P105-60		Pipe, Manifold	01	Appelez-nous	-
13	1555251		Nut, Loxit (3/8``)	01	Appelez-nous	-
14	7510P051-60		Regulator, Pressure	01	Appelez-nous	-
14	7510P052-60		Regulator, Pressure	08	Appelez-nous	-
15	7431P006-60		Module, Spark	01	Appelez-nous	-
15	3807F432-45		Support, Spark Module	01	Appelez-nous	-
16	7502P002-60		Valve, Shut Off	08	Appelez-nous	-
17	5195D108-60		Wires, Switch/module	01	Appelez-nous	-
17	5125A312-60		Harness, Loose/burner Box	01	Appelez-nous	-
17	3412A004-19		Burner, Top	01	Appelez-nous	-
