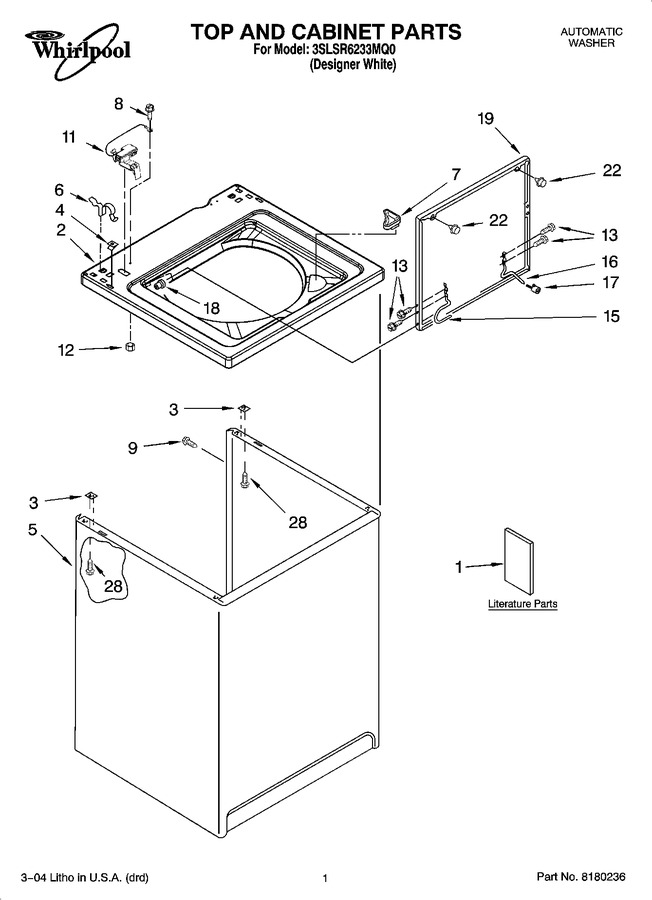

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8558482 | Literature Parts (feature Sheet) |
|
- | |||||
| 1 | LIT8546182 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT8539794 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT8539790 | Literature Parts (use & Care Guide) |
|
- | |||||
| 2 | 8318064 | Top |
|
$ 135.68 | |||||
| 3 | WP62750 | Spacer, Cabinet To Top (4) (Replaces: 62750) |
|
Immediately | $ 6.92 | ||||
| 4 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 6.65 | |||||
| 5 | 63424 | Cabinet |
|
$ 333.02 | |||||
| 6 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780) |
|
Immediately | $ 7.02 | ||||
| 7 | WP3362952 | Dispenser, Bleach (Replaces: 3362952) |
|
Immediately | $ 10.88 | ||||
| 8 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.26 | ||||
| 9 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 11 | WP8318084 | Switch, Lid (Replaces: 8318084) |
|
Immediately | $ 35.84 | ||||
| 12 | W10080180 | Nut, Hex (Replaces: 3400901) |
|
$ 12.13 | |||||
| 13 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: 3351355) |
|
Immediately | $ 6.47 | ||||
| 15 | 8318088 | Hinge, Lid (l.h.) |
|
- | |||||
| 16 | WP54583 | Hinge, Lid (r.h.) (Replaces: 54583) |
|
$ 26.60 | |||||
| 17 | 19119 | Bumper, Lid Hinge |
|
$ 5.75 | |||||
| 18 | WP21258 | Bearing, Lid Hinge (2) (Replaces: 21258) |
|
Immediately | $ 6.87 | ||||
| 19 | 8541743 | Lid |
|
- | |||||
| 22 | WP9724509 | Bumper, Lid (2) (Replaces: 9724509) |
|
Immediately | $ 7.14 | ||||
| 28 | WP3390631 | Screw, 10-16 X 3/8 (4) (Replaces: 3390631) |
|
$ 7.04 |
