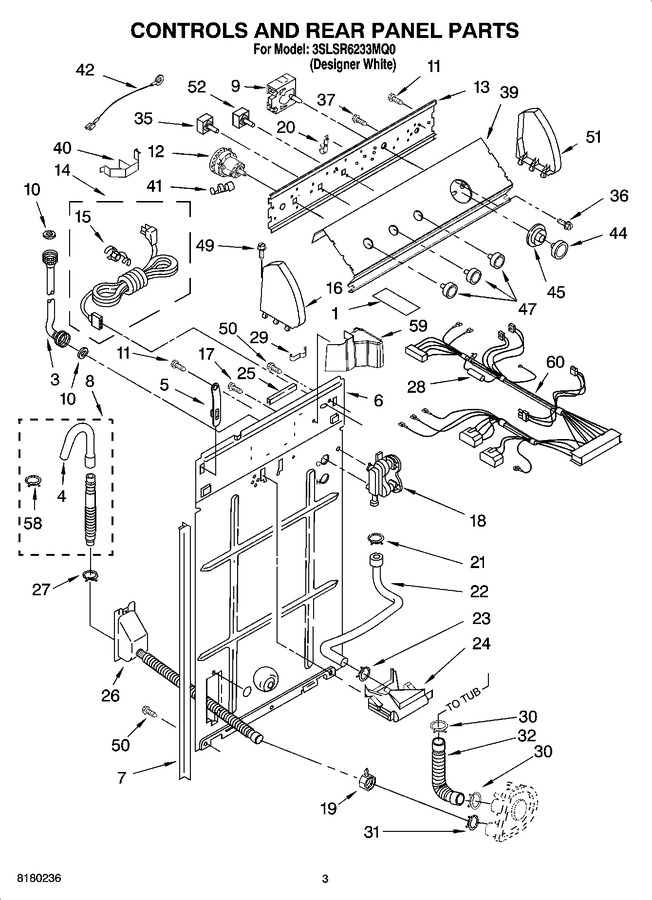

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3950829 | Shield Extension |
|
- | |||||
| 3 | WPW10615809 | Hose, Water Inlet (blue) (Replaces: 3949383) |
|
$ 89.75 | |||||
| 3 | WPW10615831 | Hose, Water Inlet (red) (Replaces: 3949382) |
|
$ 88.84 | |||||
| 4 | WP3357027 | Nozzle-drain Hose (Replaces: 3357027) |
|
$ 83.88 | |||||
| 5 | WP8568314 | Strap, Console (2) (Replaces: 8318255) |
|
$ 7.00 | |||||
| 6 | 8318405 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 23.63 | |||||
| 8 | 285666 | Hose, Drain (9 Ft.) (not Included) (Replaces: 661577) |
|
Immediately | $ 56.11 | ||||
| 8 | 285664 | Hose, Drain (4 Ft.) (Replaces: 3951609) |
|
Immediately | $ 33.20 | ||||
| 8 | 285702 | Extension, Drain Hose (21 Inches) (not Included) (Replaces: 3357090) |
|
Immediately | $ 54.81 | ||||
| 9 | 3950560 | Timer, Control (50 Hz.) (motor Not A Service Part) |
|
$ 181.26 | |||||
| 10 | WP16123 | Washer, Water Inlet Hose (4) (1-1/16 X 5/8) (Replaces: 16123) |
|
$ 6.93 | |||||
| 11 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 12 | W10820051 | Switch, Water Level (Replaces: 3366848) |
|
Immediately | $ 152.71 | ||||
| 13 | WP3948608 | Bracket, Control (Replaces: 3948608) |
|
$ 104.57 | |||||
| 14 | 8316046 | Cord, Power |
|
- | |||||
| 15 | 3949468 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 8271369 | Cap, End (l.h.) |
|
- | |||||
| 17 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.26 | ||||
| 18 | WP3360397 | Valve, Water Mixing (Replaces: 3360397) |
|
$ 259.24 | |||||
| 19 | 3976395 | Clamp, Hose |
|
$ 11.96 | |||||
| 20 | 8317975 | Retainer, Harness |
|
$ 5.86 | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: 370451) |
|
Immediately | $ 7.56 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 3357328) |
|
Immediately | $ 22.30 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 7.56 | ||||
| 24 | WP3360977 | Break, Vacuum (Replaces: 387606) |
|
Immediately | $ 45.41 | ||||
| 25 | 303294 | Edge Protector |
|
- | |||||
| 26 | WPW10358151 | Assembly-drain Hose (Replaces: 8317959) |
|
$ 95.34 | |||||
| 27 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 28 | WPW10111181 | Fuse (in Harness) (Replaces: 3951198) |
|
$ 29.84 | |||||
| 29 | 8528351 | Clip, Harness (Replaces: 3347812) |
|
- | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.03 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 7.55 | ||||
| 32 | 285871 | Hose, Pump To Tub (Replaces: 3951449) |
|
Immediately | $ 24.01 | ||||
| 35 | WPW10168256 | Switch, Rotary (temperature) (Replaces: 661612) |
|
Immediately | $ 115.93 | ||||
| 36 | WP3400818 | Screw, Timer Mounting (Replaces: 3400818) |
|
$ 7.16 | |||||
| 37 | 3179795 | Screw, Ground |
|
- | |||||
| 39 | 8539599 | Panel, Console |
|
- | |||||
| 40 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 41 | W10113937 | Clip, Grounding (Replaces: 357572) |
|
$ 9.75 | |||||
| 42 | 3398893 | Wire, Ground |
|
- | |||||
| 44 | W10807860 | Knob, Timer (Replaces: 8271345) |
|
Immediately | $ 44.97 | ||||
| 45 | WP3957849 | Dial, Timer (Replaces: 8271351) |
|
$ 41.20 | |||||
| 47 | WP3957799 | Knob, Control (Replaces: 8271339) |
|
Immediately | $ 47.20 | ||||
| 49 | WP388326 | Screw, 8-18 X 1.25 (panel To Top) (Replaces: 388326) |
|
$ 7.30 | |||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.04 | |||||
| 51 | 8271363 | Cap, End (r.h.) |
|
- | |||||
| 52 | WPW10168262 | Switch, Rotary (Replaces: 3949187) |
|
$ 116.78 | |||||
| 58 | WP3357331 | Clamp, Drain Hose (Replaces: 3366913) |
|
$ 6.80 | |||||
| 59 | 8314879 | Shield, Inlet Valve |
|
- | |||||
| 60 | 3956707 | Harness, Wiring (for Detail See Pages 9 & 10) |
|
- |
