SELECT A DIAGRAM

01 - Backguard


02 - Main Top

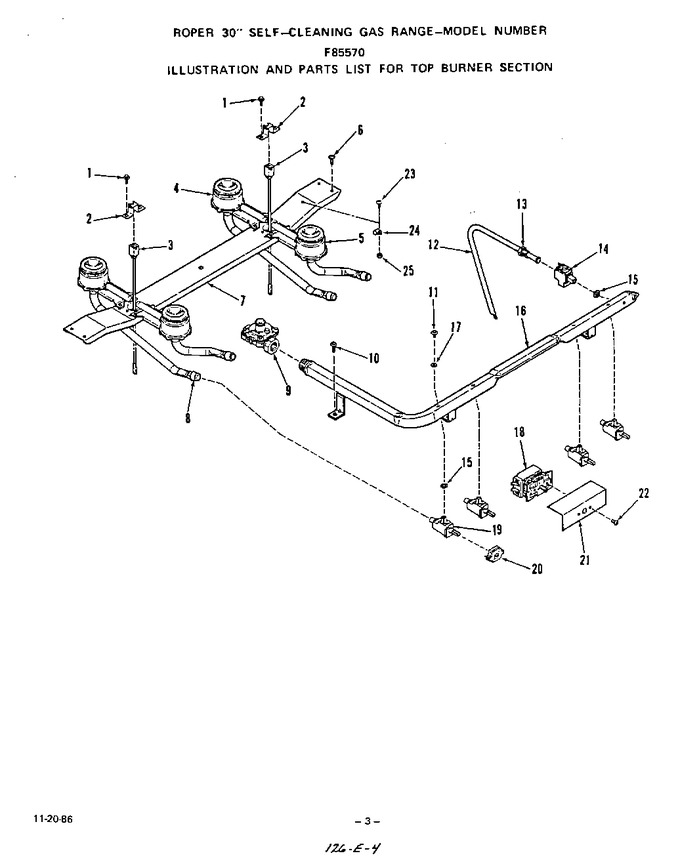

03 - Top Burner


04 - Broiler And Oven Burner


05 - Power Lock


06 - Oven Body


07 - Oven Door


08 - Wire Harnesses And Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	97217		Screw 8 - 32x3/8``		Appelez-nous	-
2	312453		Bracket-spark Igniter (lt. Or Rt.)		Appelez-nous	-
3	334510		Right		Appelez-nous	-
3	334511		Left		Appelez-nous	-
4	333223		Rear Burner-lt. Or Rt.. (inc`s. Key 8)		Appelez-nous	-
5	333222		Front Burner-lt. Or Rt. (inc`s. Key 8)		Appelez-nous	-
6	327621		Screw 6-32x3/8``		Appelez-nous	-
7	333607		Support-top Burner		Appelez-nous	-
8	327198		Air Shutter		Appelez-nous	-
9	324528		Pressure Regulator		Appelez-nous	-
10	327320		Screw 10-16x7/16``		Appelez-nous	-
11	311455		Screw (for Key 19)		Appelez-nous	-
12	231899		Tubing 3/8``		Appelez-nous	-
13	113384		Inverted Nut 3/8``		Appelez-nous	-
14	326830		Shut-oft Valve		Appelez-nous	-
15	313563		Gasket (for Key 14 & 19)		Appelez-nous	-
16	333901		Manifold Pipe		Appelez-nous	-
17	311692		Gasket (for Key 11)		Appelez-nous	-
18	328279		Thermostat		Appelez-nous	-
19	332001		Gas Valve (inc`s Key 15)		Appelez-nous	-
20	312457		Switch-gas Valve		Appelez-nous	-
21	329839		Shield-thermostat		Appelez-nous	-
22	78565		Screw 8-32x3/16``		Appelez-nous	-
23	238833		Screw 8-32 X 3/8``		Appelez-nous	-
24	106767		Clip		Appelez-nous	-
25	239764		Nut 8-32		Appelez-nous	-
