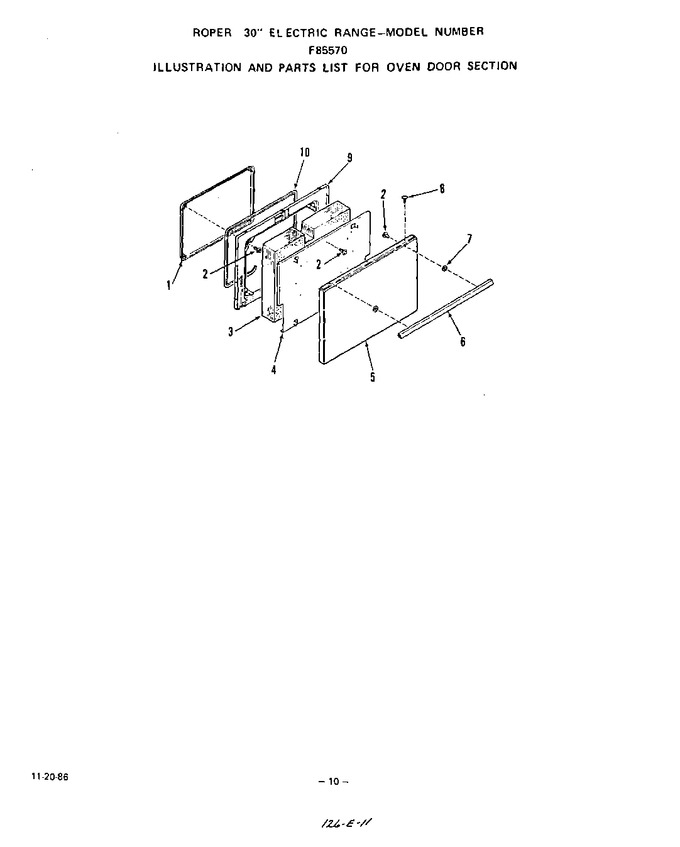

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 335508 | Plug |
|
- | |||||
| 2 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 3 | 335607 | Insulation |
|
- | |||||
| 4 | 325987 | Insulation Retainer |
|
- | |||||
| 5 | 333466 | White |
|
- | |||||
| 5 | 333468 | Almond |
|
- | |||||
| 6 | 335305 | Handle |
|
- | |||||
| 7 | 302343 | Spacer |
|
- | |||||
| 8 | 316849 | Screw-10-32x1/2`` |
|
- | |||||
| 9 | 331624 | Lining |
|
- | |||||
| 10 | 292244 | Gasket |
|
- |
