02 - Backguard
03 - Main Top
04 - Body
05 - Power Lock
06 - Oven Door
07 - Wire Harness , Optional Griddle
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

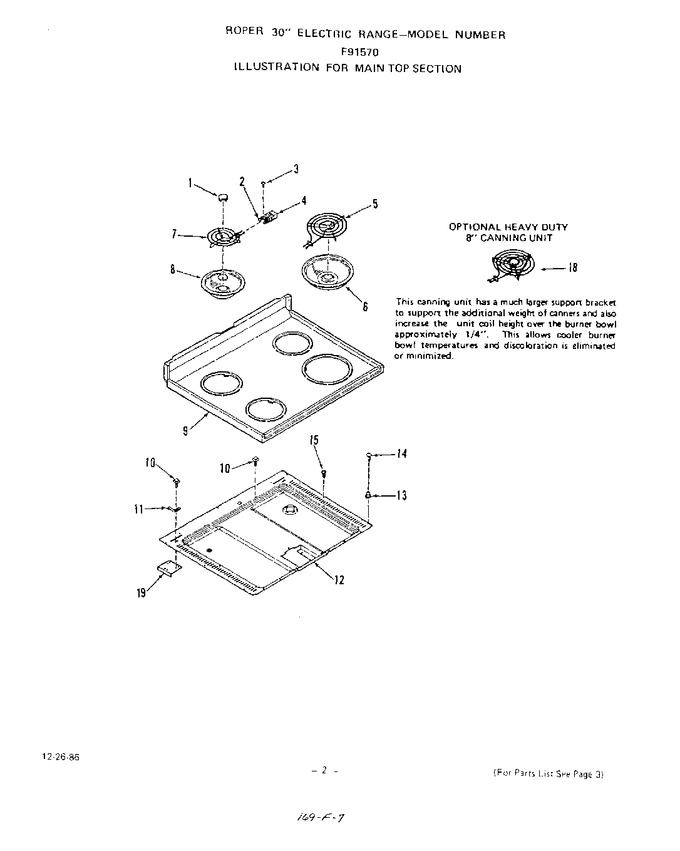

| 1 | 318586 | Medallion (4 Req) |
|
- | |||||
| 2 | 318872 | Terminal Block Clip (4 Req) |
|
- | |||||
| 3 | 299632 | Screw 7-32x5/16`` |
|
- | |||||
| 4 | 330031 | Terminal Block W/wires (4 Req) (Replaces: 318960) |
|
Immediately | $ 14.48 | ||||
| 5 | 325503 | 8`` Surface Element |
|
- | |||||
| 6 | WPW10196405 | 8`` Burner Bowl (Replaces: 304969) |
|
Immediately | $ 15.56 | ||||
| 7 | 325507 | 6`` Surface Element |
|
- | |||||
| 8 | WPW10196406 | 6`` Burner Bowl (Replaces: 296481) |
|
Immediately | $ 12.05 | ||||
| 9 | 332043 | Main Top (white) |
|
- | |||||
| 9 | 332245 | Main Top (almond) |
|
- | |||||
| 10 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 11 | 333859 | Hinge-main Top (left) |
|
- | |||||
| 11 | 334089 | Hinge-main Top (right) |
|
- | |||||
| 12 | 333171 | Burner Box Bottom |
|
- | |||||
| 13 | 333892 | Strike |
|
- | |||||
| 14 | 327256 | Screw 6-32x7/8`` |
|
- | |||||
| 15 | 316849 | Screw-10-32x1/2`` |
|
- | |||||
| 18 | 326786 | Optional 8`` Canning Element (240 Volt) |
|
- | |||||
| 18 | WPY04100165 | Optional 8`` Canning Element (208 Volt) (Replaces: 326787) |
|
Immediately | $ 50.62 | ||||
| 19 | 335816 | Burner Box Baffle |
|
- |
