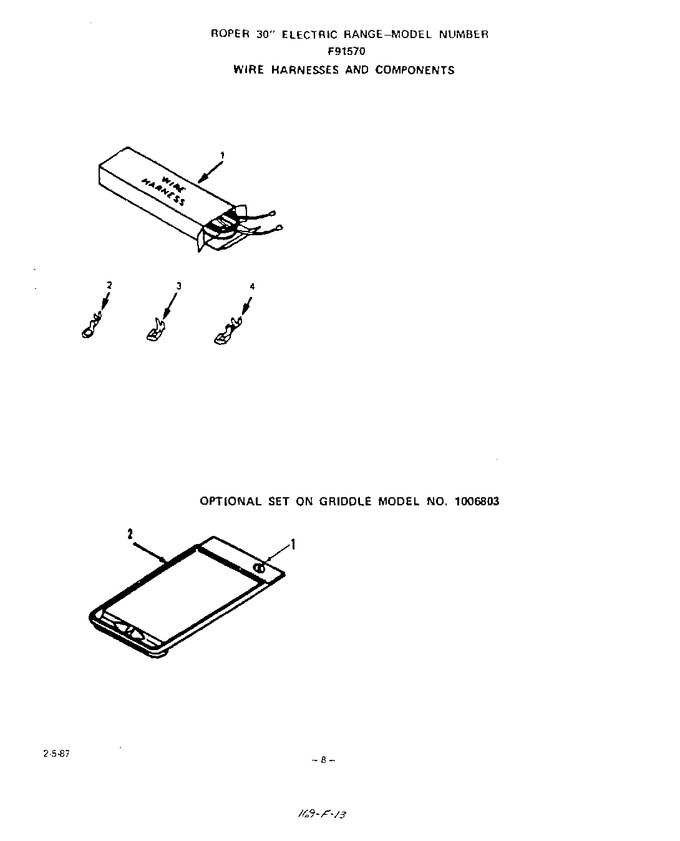

07 - Wire Harness , Optional Griddle
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 336316 | Wire Harness (main Top) |
|
- | |||||
| 1 | 87996 | Thermometer |
|
- | |||||
| 1 | 334927 | Wire Harness (clock/oven Control) |
|
- | |||||
| 1 | 335588 | Wire Harness (lock Switch) |
|
- | |||||
| 1 | 336380 | Wire Harness (main) |
|
- | |||||
| 2 | 236766 | Set-on Griddle |
|
- | |||||
| 2 | 238387 | Eyelet Terminal |
|
- | |||||
| 3 | 238391 | Flag Terminal |
|
- | |||||
| 4 | 238393 | Faston Terminal (1/4``) |
|
- | |||||
| 4 | 238392 | Faston Terminal (3/16``) |
|
- |
