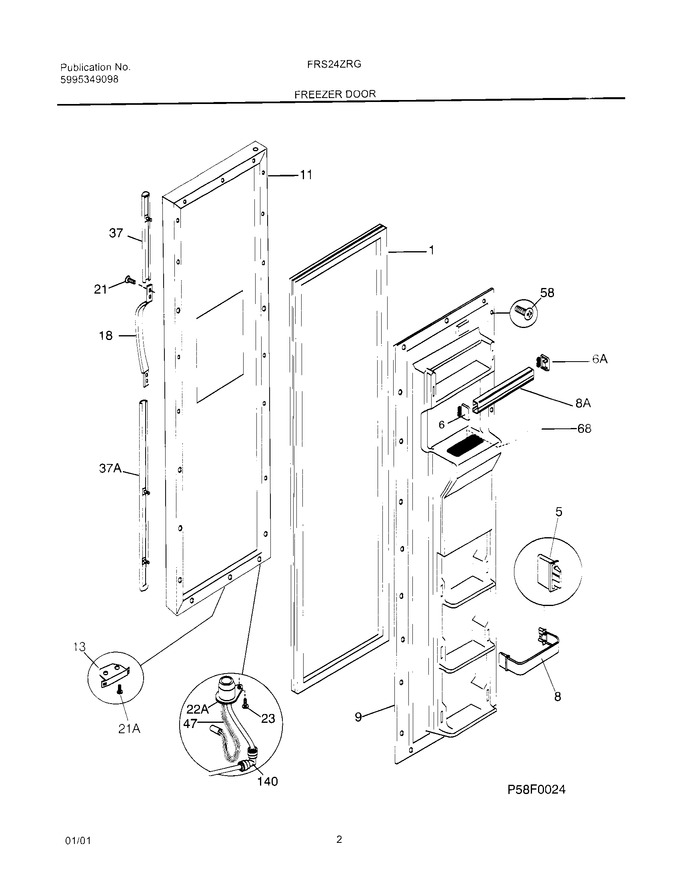

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734303		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
6	5303323484		Support-door Rack, White, Lh		Appelez-nous	-
6	5303323485		Support-door Rack, White, Rh		Appelez-nous	-
8	215474043		Rack-door		Appelez-nous	-
8	218807012		Rack-door, W/end Caps		Appelez-nous	-
9	218510601		Panel-inner Door, Frzr		Appelez-nous	-
11	5303917674		Panel-frzr Door, Almond, W/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	215826404		Handle-door, Almond		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
37	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
37	215867073		Trim-handle,almond ,lower ,w/chrome Band,and Snap Locks				$ 12.55
37	215867074		Trim-handle, Almond, Upper, W/chrome Band, And Snap Lock				$ 76.91
37	215782300		Lock-handle Trim,snap-in				$ 34.49
37	218676001		Band-decorative,chrome ,handle Trim				$ 36.17
47	218849901		Wiring Harness,frzr Door		Appelez-nous	-
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
68	218020600		Chute-ice		Appelez-nous	-
140	218518700		Elbow-water Tube				$ 61.22
NI	5308000200		Nut,7/16-20 ,nylon		Appelez-nous	-
NI	215598900		Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt		Appelez-nous	-
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
