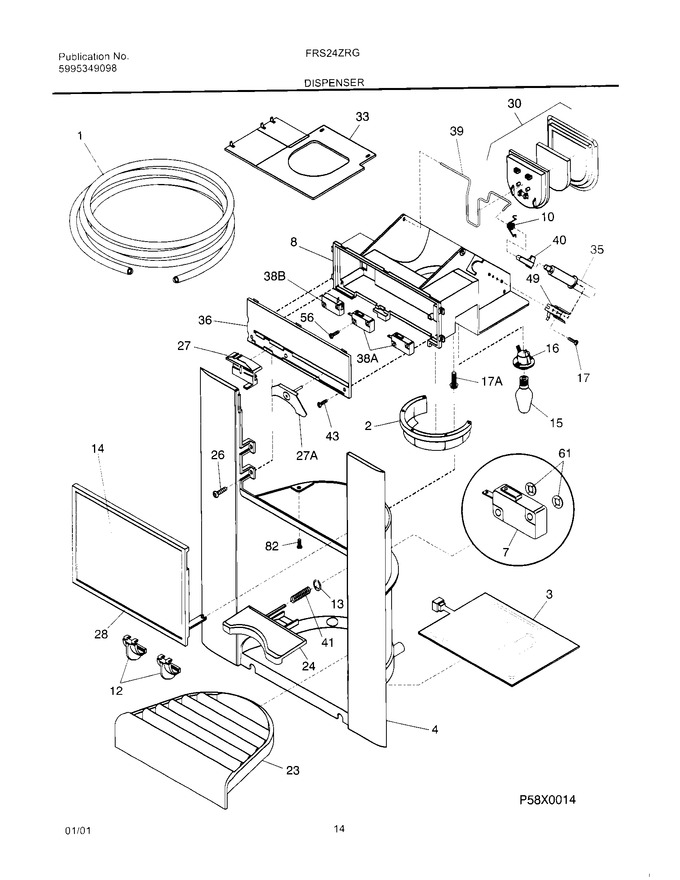

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5318582501		Tube-water Inlet, 93``, Plastic, Cut To Size		Appelez-nous	-
2	218505302		Deflector-ice Disp, Almond		Appelez-nous	-
3	215484300		Heater-door Housing				$ 40.85
4	218432102		Housing-dispenser, Almond				$ 117.13
7	218841901		Switch-actuator,micro				$ 47.68
8	218835701		Module-dispenser				$ 75.86
10	218209800		Spring,dispenser Door		Appelez-nous	-
12	218836202		Knob-selector,almond				$ 48.46
13	215748101		Ring-snap,actuator				$ 50.09
14	218416154		Label-module Cover,almond		Appelez-nous	-
15	218284900		Light Bulb / Lamp, 4w, 115v		Appelez-nous	-
16	240548901		Socket-light/lamp   (Replaces: 215284900)				$ 63.70
17	215794400		Screw,6 X 1/4		Appelez-nous	-
17	215923400		Washer-flat		Appelez-nous	-
17	215840700		Screw,truss Head,6-20 X 3/8		Appelez-nous	-
23	5303297845		Drip Tray,almond				$ 67.04
24	218796502		Actuator, Almond		Appelez-nous	-
26	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
27	218432600		Cam-slide				$ 53.97
27	218814901		Rocker-switch		Appelez-nous	-
28	218700602		Cover-module, Almond		Appelez-nous	-
30	215753600		Door Assy-ice Chute, W/gasket, Insul		Appelez-nous	-
33	218870201		Heater-disp Throat				$ 244.43
35	218740003		Heat Motor, 115v				$ 131.99
36	218835601		Cover-slctr Switch,ice Dispenser				$ 27.09
38	218479900		Switch-micro,single Pole ,double Throw				$ 57.65
38	241689106		Switch-micro,single Pole ,single Throw   (Replaces: 218835401)			Immediately	$ 8.60
39	218284600		Wire-ice Door		Appelez-nous	-
40	218284500		Yoke-heat Motor				$ 35.01
41	215765400		Spring-actuator				$ 78.96
43	215760300		Screw,4 X 3/8				$ 9.35
49	215794000		Bracket-heat Motor				$ 34.81
56	218434300		Screw-micro Switch, Pan Head, 4-24 X 9/16		Appelez-nous	-
61	215766000		Ring-retainer,micro Switch				$ 34.40
82	215296300		Screw,plask H/l,6 X 3/8		Appelez-nous	-
NI	218832301		Tube-water Inlet,inlet Valve ,to Filter		Appelez-nous	-
NI	218859901		Tube-water Inlet,inlet Valve ,to Filter		Appelez-nous	-
NI	215944300		Shield-micro Switch				$ 58.85
NI	215781700		Clip-tube		Appelez-nous	-
NI	218432502		Wiring Harness,dispenser		Appelez-nous	-
NI	215294101		Tube-water Inlet,formed,plastic,dispenser				$ 91.25
NI	5300460947		Tape-i&w Dispenser,double Faced ,foam ,60 X1-1/4 X1/32,(2)				$ 9.82
