SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Gas Controls


05 - Oven/base


06 - Top Assembly


07 - Wiring Information

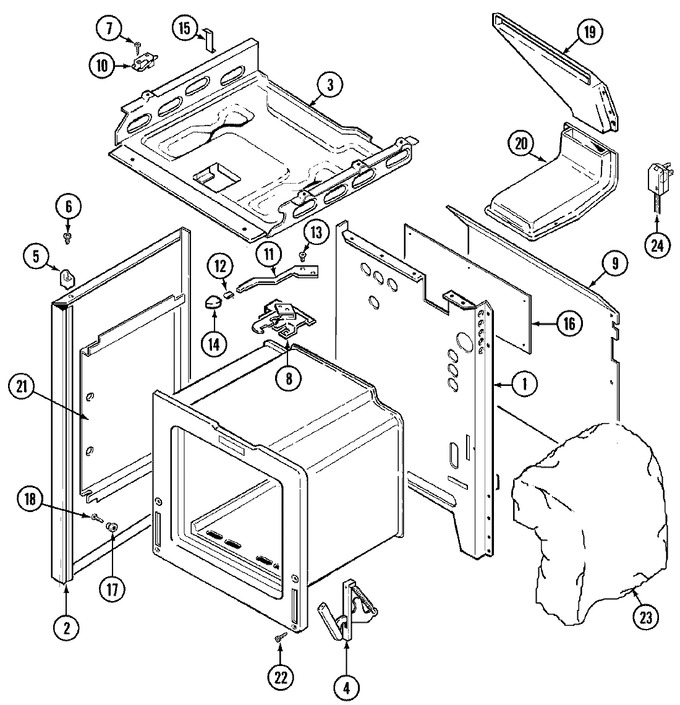

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F211-80		Back, Main	14	Appelez-nous	-
2	2618F110-71		Panel, Side (wht)	14	Appelez-nous	-
3	4011F250-80		Box, Burner	14	Appelez-nous	-
4	7106P056-60		Hinge	14	Appelez-nous	-
5	8010P088-60		Spacer, Main Top (rt)	14	Appelez-nous	-
5	8010P087-60		Spacer, Main Top (lt)	14	Appelez-nous	-
6	7101P313-60		Screw (8abx3/8-zn)	14	Appelez-nous	-
7	7101P330-60		Screw, Switch	14	Appelez-nous	-
8	8002P027-60		Latch Assy.	14	Appelez-nous	-
8	4804F028-60		Insulation, Latch Assy.	14	Appelez-nous	-
9	4005F331-51		Cover, Main Back Wire	14	Appelez-nous	-
10	3801F267-45		Bracket, Switch	14	Appelez-nous	-
10	7003P063-60		Insulator, Door Lock Switch	14	Appelez-nous	-
10	7403P361-60		Switch, Door Latch	14	Appelez-nous	-
11	8009P029-60		Lever, Latch Assy.	14	Appelez-nous	-
11	74002974		Lever, Latch (gry)	28			$ 45.72
12	W10124350		Not Required Part Or See Note	28	Appelez-nous	-
12	7112P112-60		Clip, Latch Lever	14			$ 4.83
13	WP4159193		Screw, Lever   (Replaces: 7101P230-60)	14			$ 4.29
14	7701P153-60		Handle, Door Latch (wht)	14	Appelez-nous	-
14	W10124350		Not Required Part Or See Note	28	Appelez-nous	-
15	3807F431-45		Support, Main Top	14	Appelez-nous	-
16	3604F165-51		Shield, Flue (lower)	14	Appelez-nous	-
17	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	14			$ 7.07
18	7101P103-60		Screw	14	Appelez-nous	-
19	4022W007-19		Extension, Flue Box	14	Appelez-nous	-
20	4006W113-45		Box, Vent	14	Appelez-nous	-
21	3804F103-51		Retainer, Insulation (side)	14	Appelez-nous	-
22	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	14			$ 4.29
23	4804F036-60		Insulation, Wrap	14	Appelez-nous	-
23	74001800		Insulation, Back	14	Appelez-nous	-
24	7402P043-60		Cord, Power	14	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
