01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

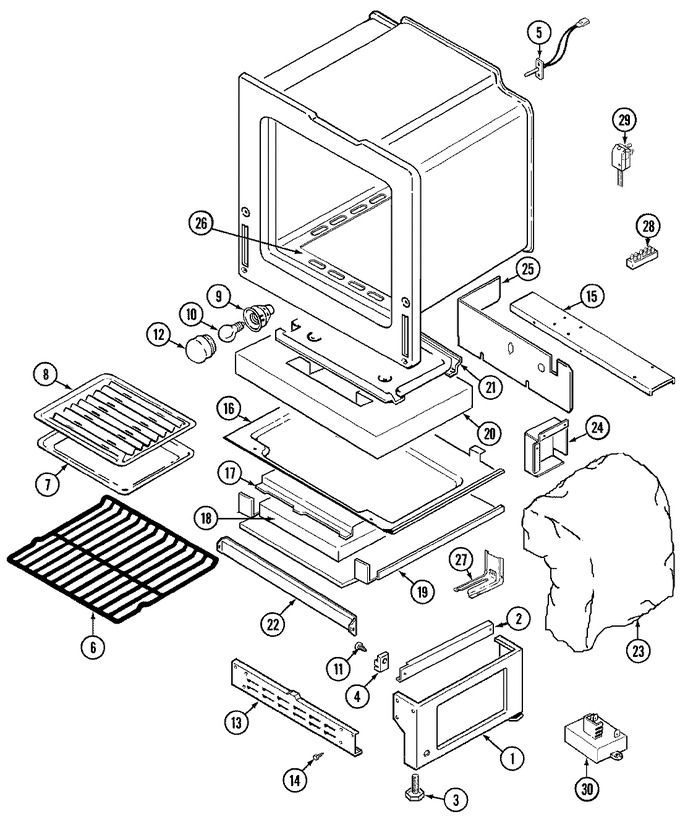

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001439 | Pedestal (sides) | 14 |
|
- | ||||
| 2 | 3406F028-51 | Runner, Drawer | 14 |
|
- | ||||
| 3 | 74001311 | Leg, Leveling | 14 |
|
- | ||||
| 4 | 8004P033-60 | Support, Drawer | 14 |
|
- | ||||
| 5 | 12001655 | Probe, Oven Sensor (Replaces: 7430P009-60) | 14 |
|
Immediately | $ 41.01 | |||
| 6 | WPW10282492 | Rack, Oven (Replaces: 7801P047-60) | 14 |
|
Immediately | $ 65.15 | |||
| 7 | Y3401F02019 | Pan, Broil | 14 |
|
- | ||||
| 8 | Y3413F01619 | Insert, Broil Pan | 14 |
|
- | ||||
| 9 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 14 |
|
Immediately | $ 66.10 | |||
| 10 | WP67002552 | Lamp, Oven (Replaces: 7407P027-60) | 14 |
|
Immediately | $ 10.58 | |||
| 11 | 7101P103-60 | Screw | 14 |
|
- | ||||
| 12 | WP9781049 | Cover, Bulb (Replaces: 7724P047-60) | 14 |
|
Immediately | $ 71.93 | |||
| 13 | 4020F001-67 | Pedestal (fr & Rear) | 14 |
|
- | ||||
| 14 | W11233072 | Screw (Replaces: 7101P290-60) | 14 |
|
Immediately | $ 12.62 | |||
| 15 | 3807F476-51 | Support, Valve & Regulator | 14 |
|
- | ||||
| 16 | 3804F112-47 | Retainer, Insulation | 14 |
|
- | ||||
| 17 | 3604F204-51 | Shield, Heat | 14 |
|
- | ||||
| 18 | 7002P140-60 | Insulation, Drawer & Shield | 14 |
|
- | ||||
| 19 | 3604F205-51 | Shield, Drawer | 14 |
|
- | ||||
| 20 | 4804F014-60 | Insulation, Oven Bottom | 14 |
|
- | ||||
| 21 | 3401F025-47 | Pan, Bake Burner | 14 |
|
- | ||||
| 22 | 3601F208-45 | Baffle, Oven Front | 14 |
|
- | ||||
| 23 | 74001800 | Insulation, Back | 14 |
|
- | ||||
| 23 | 4804F036-60 | Insulation, Wrap | 14 |
|
- | ||||
| 24 | 3807F473-51 | Support, Spark Module | 14 |
|
- | ||||
| 25 | 4005F429-51 | Cover, Valve | 14 |
|
- | ||||
| 26 | 5504M004-19 | Bottom, Oven Assy. | 14 |
|
- | ||||
| 27 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 14 |
|
$ 26.33 | ||||
| 27 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 14 |
|
Immediately | $ 4.69 | |||
| 28 | 7401P037-60 | Block, Terminal | 14 |
|
- | ||||
| 29 | 7402P043-60 | Cord, Power | 14 |
|
- | ||||
| 30 | 7510P046-60 | Regulator, Voltage | 14 |
|
- | ||||
| NI | 74001441 | Harness, Pedestal | 14 |
|
- |
