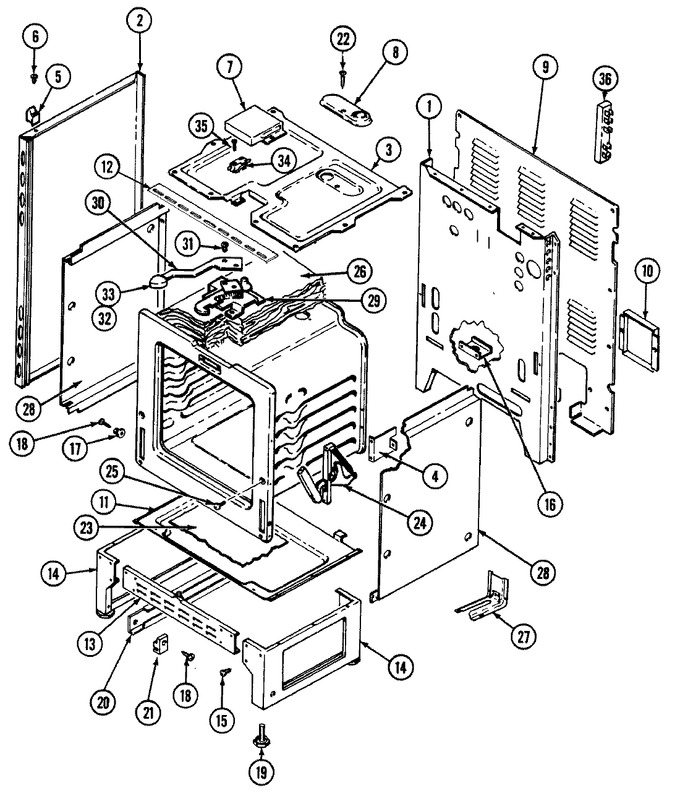

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven
05 - Top Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7403P160-60 | Switch, Hi-limit | 10 |
|
- | ||||
| 1 | 74001341 | Back, Main | 10 |
|
- | ||||
| 2 | 2618F110-71 | Panel, Side (wht) | 10 |
|
- | ||||
| 3 | 4011F240-19 | Box, Burner | 10 |
|
- | ||||
| 4 | 3807F400-51 | Support,oven Rear | 10 |
|
- | ||||
| 5 | 8010P087-60 | Spacer, Main Top (lt) | 10 |
|
- | ||||
| 5 | 8010P088-60 | Spacer, Main Top (rt) | 10 |
|
- | ||||
| 6 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 6.95 | ||||
| 7 | 4005F398-80 | Cover, Latch Assy. | 10 |
|
- | ||||
| 8 | 4005F432-45 | Cover, Vent | 10 |
|
- | ||||
| 9 | 4005F427-51 | Cover, Access | 10 |
|
- | ||||
| 10 | 4005F376-51 | Cover, Terminal Block Acces | 10 |
|
- | ||||
| 11 | 3804F112-51 | Retainer, Insulation | 10 |
|
- | ||||
| 12 | 3801F305-80 | Bracket, Main Top | 10 |
|
- | ||||
| 13 | 4020F001-80 | Pedestal, Front/rear | 10 |
|
- | ||||
| 14 | 4020W017-80 | Pedestal, Sides | 10 |
|
- | ||||
| 14 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 7101P103-60 | Screw | 10 |
|
- | ||||
| 16 | 3605F174-51 | Plate, Conduit Tubing | 10 |
|
- | ||||
| 17 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 10 |
|
$ 7.07 | ||||
| 18 | W11772394 | Screw (Replaces: 7101P300-60) | 10 |
|
Immediately | $ 10.94 | |||
| 19 | 74001311 | Leg, Leveling | 10 |
|
- | ||||
| 20 | 3406F028-51 | Runner, Drawer | 10 |
|
- | ||||
| 21 | 8004P026-60 | Support, Drawer (rear) | 10 |
|
$ 9.29 | ||||
| 22 | 7101P103-60 | Screw | 10 |
|
- | ||||
| 23 | 8312P058-60 | Foil, Insulation Retainer | 10 |
|
- | ||||
| 24 | 7106P056-60 | Hinge | 10 |
|
- | ||||
| 25 | WP4159193 | Screw (Replaces: 7101P115-60) | 10 |
|
$ 4.29 | ||||
| 26 | 4804F036-60 | Insulation, Wrap | 10 |
|
- | ||||
| 26 | 74001159 | Insulation, Back | 10 |
|
- | ||||
| 27 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 10 |
|
Immediately | $ 4.69 | |||
| 27 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 10 |
|
$ 26.33 | ||||
| 28 | 3804F103-51 | Retainer, Insulation (side) | 10 |
|
- | ||||
| 29 | 4804F028-60 | Insulation, Latch Assy. | 10 |
|
- | ||||
| 29 | 8002P025-60 | Latch Assy. | 10 |
|
- | ||||
| 29 | 7101P280-60 | Screw W/washer (blk) | 10 |
|
- | ||||
| 30 | 8009P024-60 | Lever, Door Latch | 10 |
|
- | ||||
| 31 | 7109P015-60 | Washer | 10 |
|
- | ||||
| 31 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) | 10 |
|
$ 4.29 | ||||
| 32 | 7112P112-60 | Clip, Latch Lever | 10 |
|
$ 4.83 | ||||
| 33 | 7701P132-60 | Handle, Door Latch (blk) | 10 |
|
- | ||||
| 34 | 7403P228-60 | Switch, Door Latch | 10 |
|
- | ||||
| 35 | 7101P103-60 | Screw | 10 |
|
- | ||||
| 36 | 7401P041-60 | Board, Terminal | 10 |
|
- | ||||
| NI | 5195D082-60 | Harness, Door Latch | 10 |
|
- | ||||
| NI | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) | 10 |
|
Immediately | $ 31.65 | |||
| NI | 3801F305-80 | Bracket, Main Top | 10 |
|
- |
