SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Oven


05 - Top Assy.

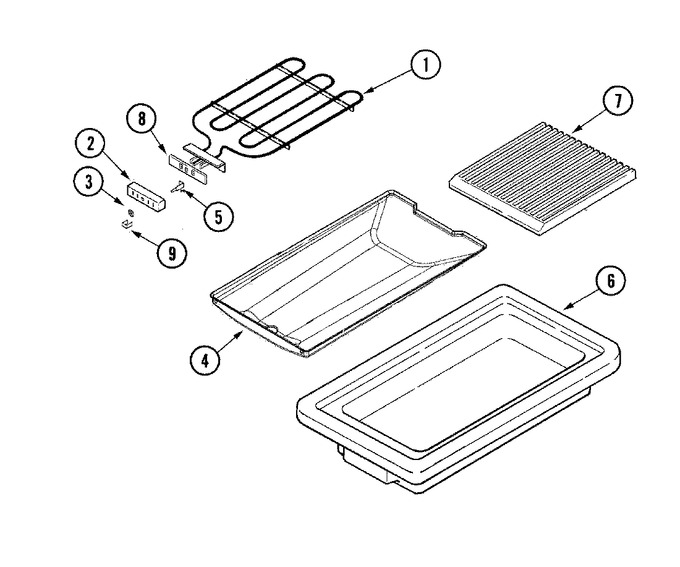

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
1	8026P019-60		Tube, Vent	10	Appelez-nous	-
2	W11772394		Screw   (Replaces: 7101P300-60)	10		Immediately	$ 10.94
2	3807F387-45		Support, Broil Element	10	Appelez-nous	-
3	WPY04000059		Element, Broil   (Replaces: 7406P065-60)	10			$ 159.00
4	UB870		Element, Bake   (Replaces: 7406P092-60)	10		Immediately	$ 44.96
4	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
5	12001656		Sensor, Oven   (Replaces: 7430P010-60)	10		Immediately	$ 39.55
6	WPW10282492		Rack, Oven   (Replaces: 7801P047-60)	10		Immediately	$ 65.15
7	Y3401F02019		Pan, Broil	10	Appelez-nous	-
8	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
9	WP7407P182-60		Receptacle, Bulb   (Replaces: 7407P088-60)	10		Immediately	$ 66.10
NI	8009		Bulb-oven   (Replaces: 7407P103-60)	10		Immediately	$ 16.80
NI	3601F237-47		Baffle, Broil	10	Appelez-nous	-
NI	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
NI	WP9781049		Cover, Bulb   (Replaces: 7724P047-60)	10		Immediately	$ 71.93

    View Diagram in Separate Window       Print Part List
