SELECT A DIAGRAM

Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

Diagram for 02 - Refrigerator Liner Parts
02 - Refrigerator Liner Parts

Diagram for 03 - Freezer Liner Parts
03 - Freezer Liner Parts

Diagram for 04 - Refrigerator Door Parts
04 - Refrigerator Door Parts

Diagram for 05 - Freezer Door Parts
05 - Freezer Door Parts

Diagram for 06 - Unit Parts
06 - Unit Parts

Diagram for 07 - Shelf Parts, Optional Parts (not Included)
07 - Shelf Parts, Optional Parts (not Included)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12827958 Tech Sheet Appelez-nous -
1 12828189 Owners Manual Appelez-nous -
3 WP67001130 Plug, Button (3) White   (Replaces: M0310729) In-Stock Immediately $ 7.39

3 WP12246608 Plug, Button (3) (black)   (Replaces: M0310731) In-Stock Immediately $ 7.34

4 67002816 Clip, Waterline Special Order $ 17.24

5 W11820444 Roller Assembly (left)   (Replaces: W10130460) In-Stock Immediately $ 33.62

5 W11820445 Roller Assembly (right)   (Replaces: W10130459) In-Stock Immediately $ 33.62

7 WP67006642 Pin, Center Hinge   (Replaces: 67006642) Special Order $ 7.90

9 WP8281196 Screw   (Replaces: 67006521) In-Stock Immediately $ 6.80

10 B5759649 Gasket Appelez-nous -
11 W11573362 Screw (3)   (Replaces: 67006380) Special Order $ 13.25

12 WP98165 Screw   (Replaces: 67006473) Special Order $ 7.71

13 A3076901 Plug-button Special Order $ 5.70

14 WP489349 Screw   (Replaces: 67006303) In-Stock Immediately $ 7.59

15 12655102AP Hinge, Center (white)   (Replaces: 12655102WD) Special Order $ 135.78

15 12655103ED Hinge, Center (black) Special Order $ 80.33

16 WPW10141622 Foot Brake   (Replaces: W10141622) In-Stock Immediately $ 7.42

17 12587703W Cover, Corner White Special Order $ 20.61

17 67003485 Cover, Corner (black) In-Stock Immediately $ 19.93

18 12626909WD Hinge, Top (left Hand) Appelez-nous -
18 12626907WD Hinge, Top (right Hand) Appelez-nous -
20 67006564 Screw (8) In-Stock Immediately $ 7.34

21 67001014 Cover Hinge (white) Special Order $ 20.11

21 67001012 Cover Hinge (black) Special Order $ 44.74

22 W10131134 Grille Assembly (includes Clips) (black) Special Order $ 53.25

22 W10131133 Grille Assembly (includes Clips) (white) Appelez-nous -
23 WP33001882 Screw   (Replaces: 67006737) Special Order $ 75.34

25 67006425 Screw (10) In-Stock Immediately $ 6.57

27 12479808 Cover, Water Valve Appelez-nous -
28 67002230 Cover, Unit Appelez-nous -
30 67003796 Insulation, Sound Special Order $ 19.27

31 67001066 Tube, Drain Special Order $ 55.82

32 67001067 Clip, Drain Tube Special Order $ 8.69


    View Diagram in Separate Window     Print Icon   Print Part List

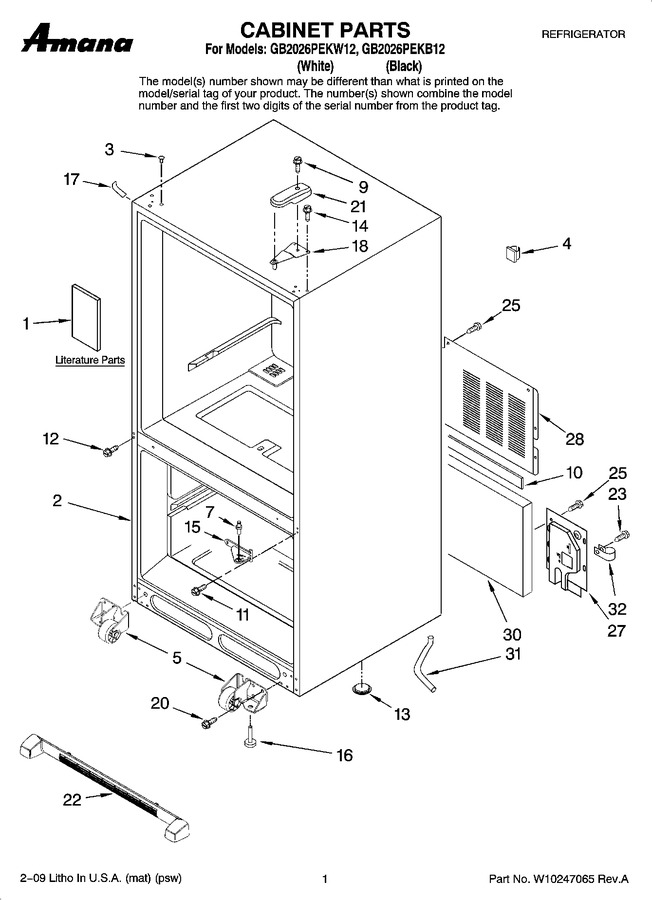

Diagram for GB2026PEKW12
