SELECT A DIAGRAM

01 - Cabinet Parts

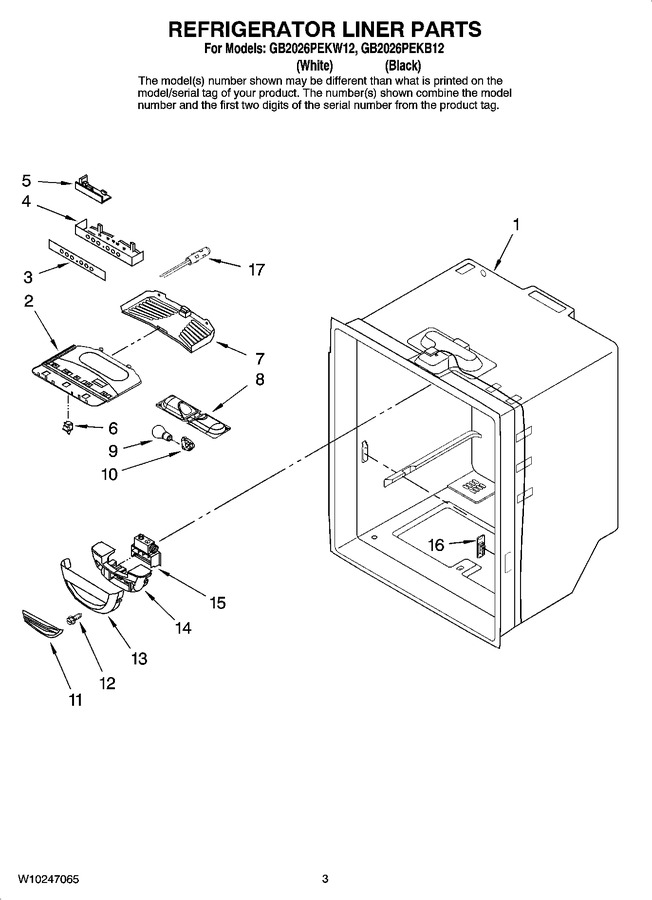

02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Unit Parts


07 - Shelf Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	Y67003896		Bracket, Control And Lights		Appelez-nous	-
3	67005055		Overlay		Appelez-nous	-
4	WPW10464769		Housing, Electronic Control   (Replaces: 67003898)			Immediately	$ 102.38
5	WPW10708492		Board, Control   (Replaces: 12784416)				$ 239.10
6	W11384469		Switch, Light   (Replaces: C3680310)			Immediately	$ 35.18
7	W11284721		Cover, Light   (Replaces: 67003897)				$ 95.42
8	12806601		Housing, Light   (Replaces: 67003901)				$ 99.18
9	WP67002552		Bulb, Light (2)   (Replaces: 67002552)			Immediately	$ 11.11
10	W11447232		Socket, Light (2)   (Replaces: 12570705)			Immediately	$ 12.48
11	67003900		Insert, Damper Cover				$ 7.70
12	W11772394		Screw   (Replaces: 67006602)			Immediately	$ 11.90
13	WP12806701		Cover, Damper   (Replaces: 67003899)				$ 106.79
14	W11750607		Insulation   (Replaces: 13012401)				$ 45.14
15	WPW10127430		Control, Damper   (Replaces: W10127430)				$ 200.45
16	67006110		Cover, Vent Chiller		Appelez-nous	-
17	12002355		Thermistor			Immediately	$ 46.30
NI	12973503		Harness, Controls (refrigerator)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
