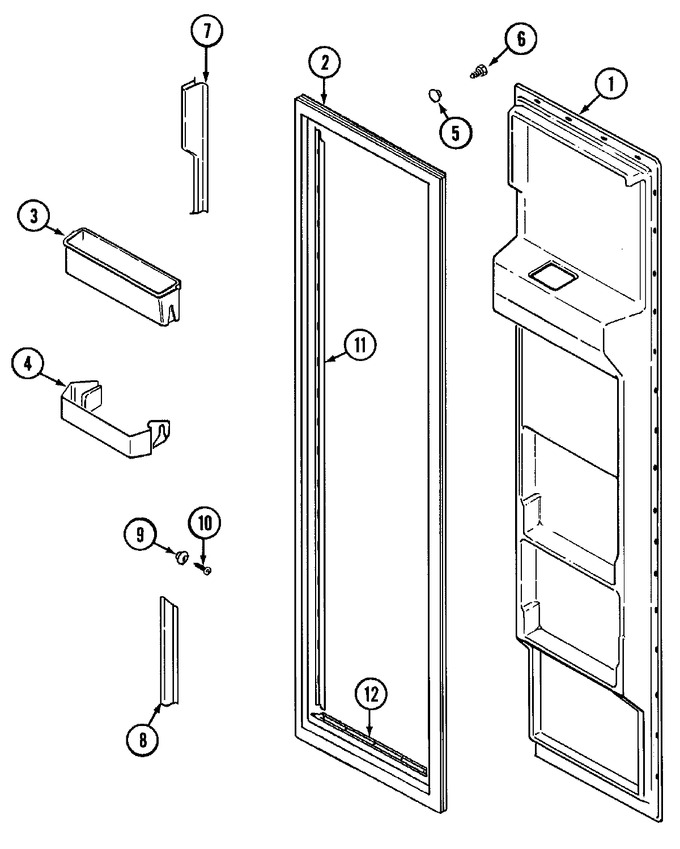

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61001344		Liner, Frz. Door	11	Appelez-nous	-
1	65275-5		Screw	11	Appelez-nous	-
2	70024-2		Gasket, Frz. Door	11	Appelez-nous	-
3	61001345		Shelf, Pick-off	11	Appelez-nous	-
4	69870-33		Front, Pick Off	11	Appelez-nous	-
5	65660-2		Stud, Pick-off Shelf	11	Appelez-nous	-
6	WP488729		Screw   (Replaces: 9986-45)	11		Immediately	$ 7.01
7	61001346		Dyke, Door (upper)	11	Appelez-nous	-
8	61001347		Dyke, Door (lower)	11	Appelez-nous	-
9	61001391		Stud, P.o. Shelf	11	Appelez-nous	-
9	61001350		Stud, Pick-off Shelf	11	Appelez-nous	-
10	60319-4		Screw, Anchor	11	Appelez-nous	-
10	WP98165		Screw   (Replaces: 61001351)	11			$ 7.20
10	66170-4		Anchor	11	Appelez-nous	-
11	69992-1		Retainer, Gasket	11	Appelez-nous	-
12	69992-4		Retainer, Gasket	11	Appelez-nous	-
