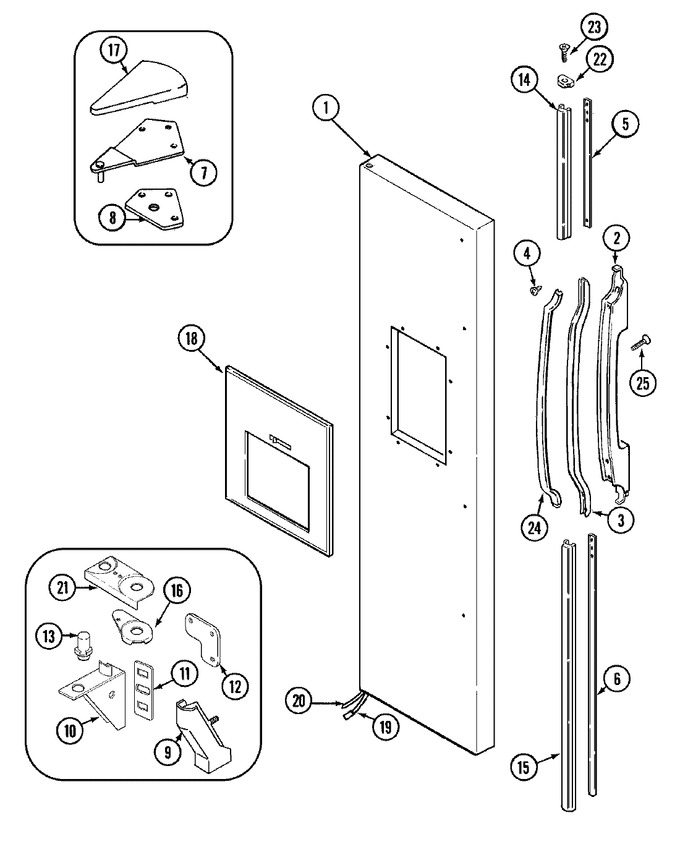

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 61001393 | Panel, Frz. Door (wht) | 11 |
|
- | ||||
| 1 | 495034-900 | Plug Button, Door | 11 |
|
- | ||||
| 2 | 67922-1 | Handle | 11 |
|
- | ||||
| 3 | 61001704 | Shim, Frame | 11 |
|
- | ||||
| 3 | 67920-1 | Frame,handle | 11 |
|
- | ||||
| 4 | W10856122 | Screw (Replaces: 61001287) | 11 |
|
$ 6.98 | ||||
| 5 | 67926-1 | Shim, Trim Lock (upr) | 11 |
|
- | ||||
| 6 | 67926-2 | Shim, Trim Lock (lwr) | 11 |
|
- | ||||
| 7 | WP3-24838-048 | Screw, Upper Hinge (Replaces: 65275-86) | 11 |
|
$ 7.00 | ||||
| 7 | 61001319 | Hinge, Upper | 11 |
|
- | ||||
| 8 | 65031-1 | Shim, Upper Hinge | 11 |
|
- | ||||
| 9 | 61001609 | Cover, Hinge (blk) | 11 |
|
- | ||||
| 9 | 65275-47 | Screw, Hinge Cover (black) | 11 |
|
- | ||||
| 10 | 61001321 | Hinge, Lower | 11 |
|
- | ||||
| 10 | 65275-46 | Screw | 11 |
|
- | ||||
| 11 | 69510-1 | Shim, Lower Hinge | 11 |
|
- | ||||
| 12 | 65275-59 | Screw | 11 |
|
- | ||||
| 12 | 67874-1 | Tapping Plate, Lower Hinge | 11 |
|
- | ||||
| 13 | 61001329 | Pin, Lower Hinge | 11 |
|
- | ||||
| 14 | 67932-8 | Trim, Extension (upr - Wht) | 11 |
|
- | ||||
| 15 | 67932-9 | Trim, Extension (lwr - Wht) | 11 |
|
- | ||||
| 16 | 61001337 | Bushing, Lower Hinge----na | 11 |
|
- | ||||
| 17 | 61001317 | Cover, Upper Hinge (wht) | 11 |
|
- | ||||
| 18 | 414004-35 | Screw | 11 |
|
- | ||||
| 18 | 61001842 | Escutcheon (wht) | 11 |
|
- | ||||
| 19 | 69804-1 | Wire Harness, Door | 11 |
|
- | ||||
| 20 | WPW10426709 | Tubing, Coil To Fountain (Replaces: 67187-29) | 11 |
|
$ 126.83 | ||||
| 21 | 61001316 | Stop, Door | 11 |
|
- | ||||
| 21 | W10856122 | Screw (Replaces: 65275-80) | 11 |
|
$ 6.98 | ||||
| 22 | 67928-2 | Endcap, Handle | 11 |
|
- | ||||
| 23 | 414004-35 | Screw | 11 |
|
- | ||||
| 24 | 67924-2 | Insert, Handle (wht) | 11 |
|
- | ||||
| 25 | 65275-44 | Screw | 11 |
|
- |
